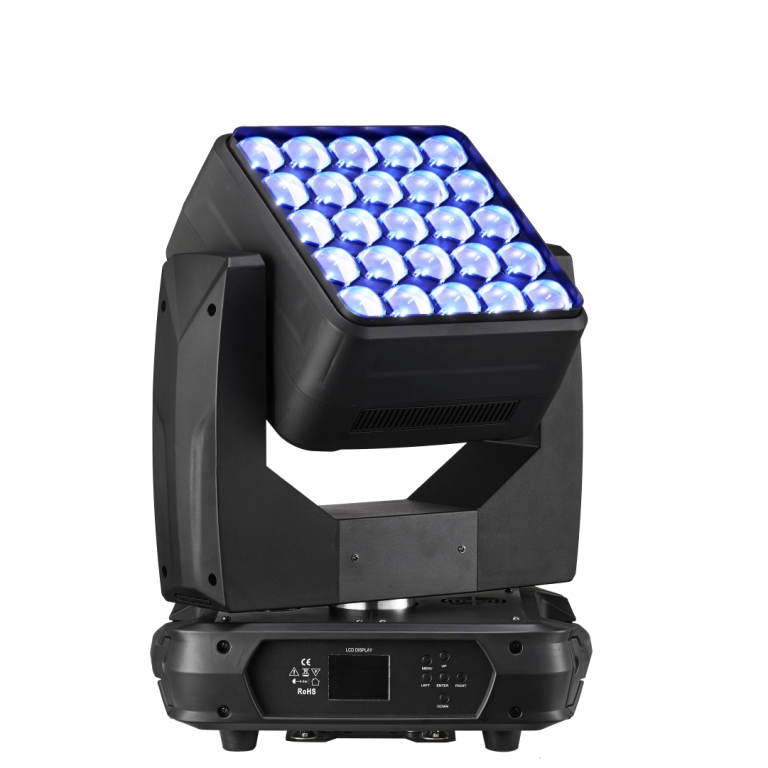

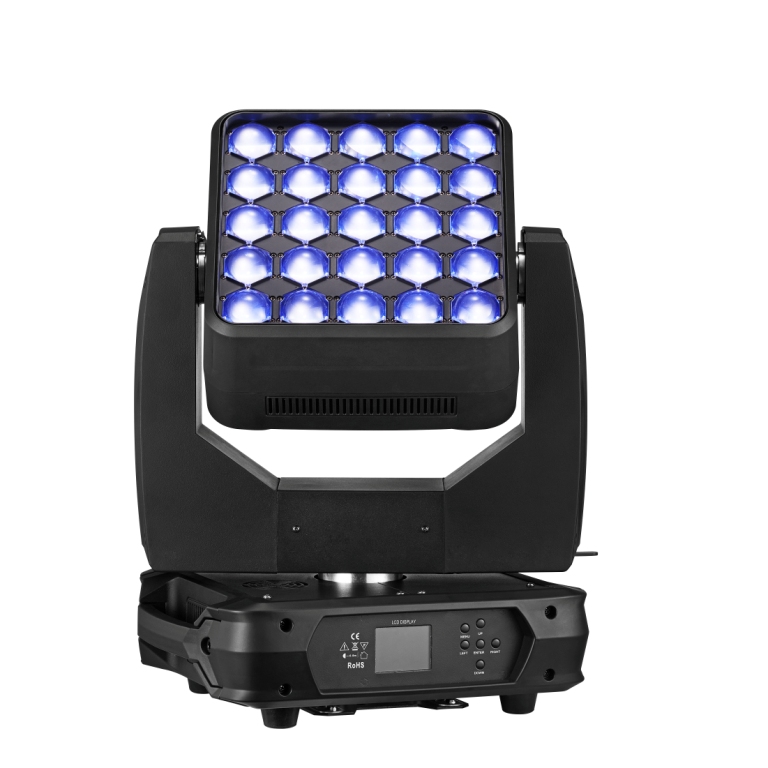

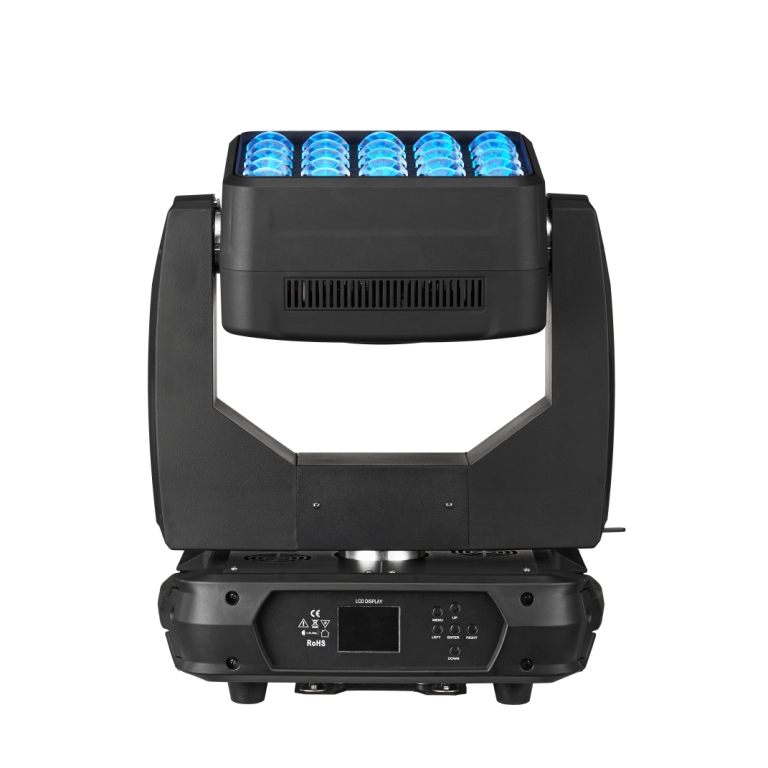

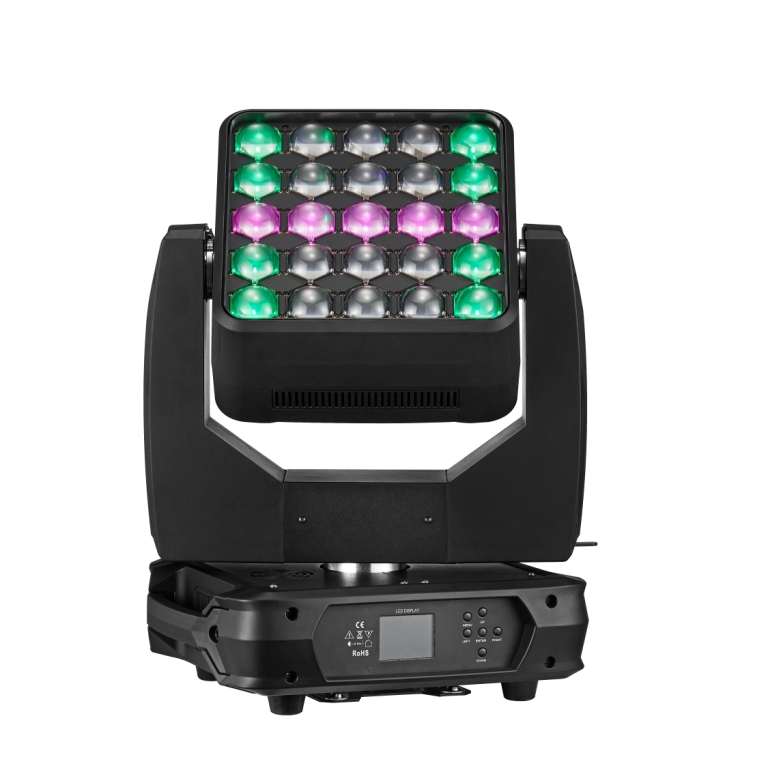

Matrix 25E - Matrix Beam Wash 3-in-1, Built-in Letters/Numbers, Artnet RDM
|
Matrix 25E is moving head with 25 RGBW high-power LEDs to creating perfect 2D graphical effects,Numbers and alpha letter, It features a revolutionary new optical zoom system (fast and silent zoom system)and stationary transmitting lens (Unique design lens) at range of 4 to 60 degrees.
Features:
1. Pixel Mapping, Matrix effects ( 2D graphical, letter, Numbers), Zoom ( 4-60degree)
2. Next-generation RGBW high-power LED emitters, 25 multi-chip High-Power LED sources
3. continuous, unlimited movement on pan and tilt

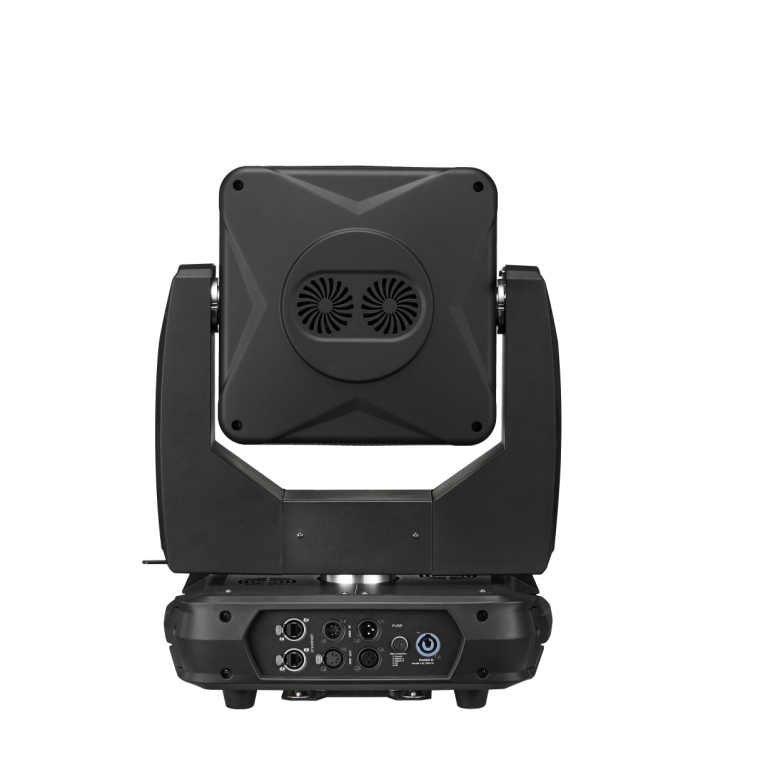

4. Ethercon RJ45 IN / OUT, 5- pin and 3-pin DMX , Powercon In
5. Fast and silent zoom system, 3 motors inside
Specifications
Source Type: High power 25x15w RGBW 4-in-1 LEDs, 60,000 hours lifetime,Over 16,000 lumens
Number of LEDs: 25
25 individual LED controls
Pan: 540° Tilt: 270°
DMX:19/39/118 chs
CONTROL / CONNECTIONS
3 DMX Channel Modes ( 19/39/118 chs)
Stand-alone mode and Master/Slave modes
4 Button Touch Control Panel
LCD Menu Display
3pin, 5pin DMX In/Out
powerCON In
Ethercon RJ45 IN / OUT
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
450W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
FCC | CE | RoHs Compliant | IP20
SIZE / WEIGHT：
Length: 15.3" (390mm)
Width: 11.4", (290mm)
Vertical Height:22.1", (540mm)
Weight: 38.5lbs. (17.5 kg)
|
|
|
|
|
|
