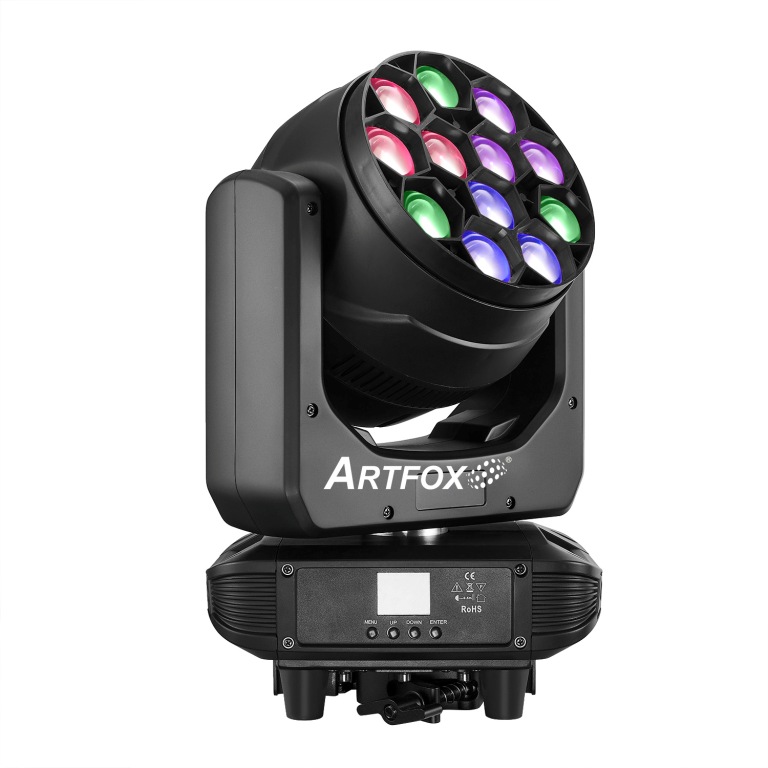

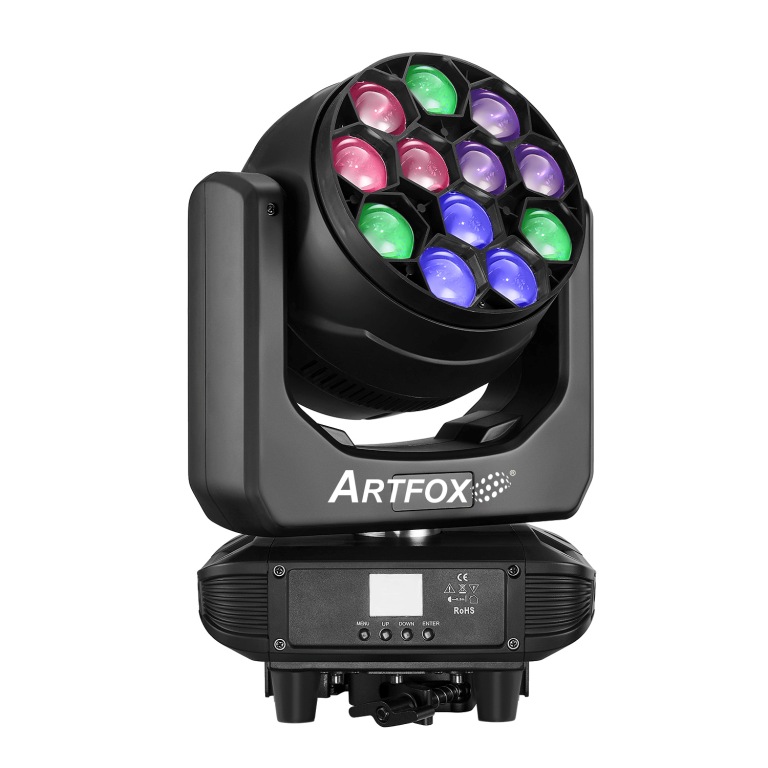

Solar 12 - Beam Wash 2-in-1, 12x40w RGBW, Pixel Tech
|
The ARTFOX “Solar Wash M” a compact yet extremely powerful Wash Effects fixture featuring custom designed optics, pixel mapping, pre-programmmed color and 6° – 49° zoom range. Powered by 12 (40 W) Osram RGBW LEDs, it can handle any application, even aerial washing, with ease.
Features:
Osram 4 in 1, 40w LED, moving head wash with pixel mapping and zoom
Beam-wash , 2 in 1. very narrow beam and high brightness wash
Compact moving head with folder clamps, extremely powerful output.
Precise and fast movement, silent fans and movement.
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
Built in colors for quick design possibilities
Quiet operation for a wide range of installation situations
6° - 49° Zoom angle for variable beam sizes
Specifications
SOURCE
(12) 40W Osram RGBW LEDs
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
18,500 lux @ 5m,16.4ft , 6 degree
1,200 lux @ 5m, 16.4 ft, 45 degree.
EFFECTS
Motorized Zoom (6° - 49°)
Linear Color Temperature Presets
RGBW Color Mixing and Pixel Control
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
CONTROL / CONNECTIONS
2 DMX Channel Modes (19 /31)
Fast and precise Pan and Tilt Movement
4 Button Touch Panel
LCD Menu Display
DMX, RDM,Protocol Support

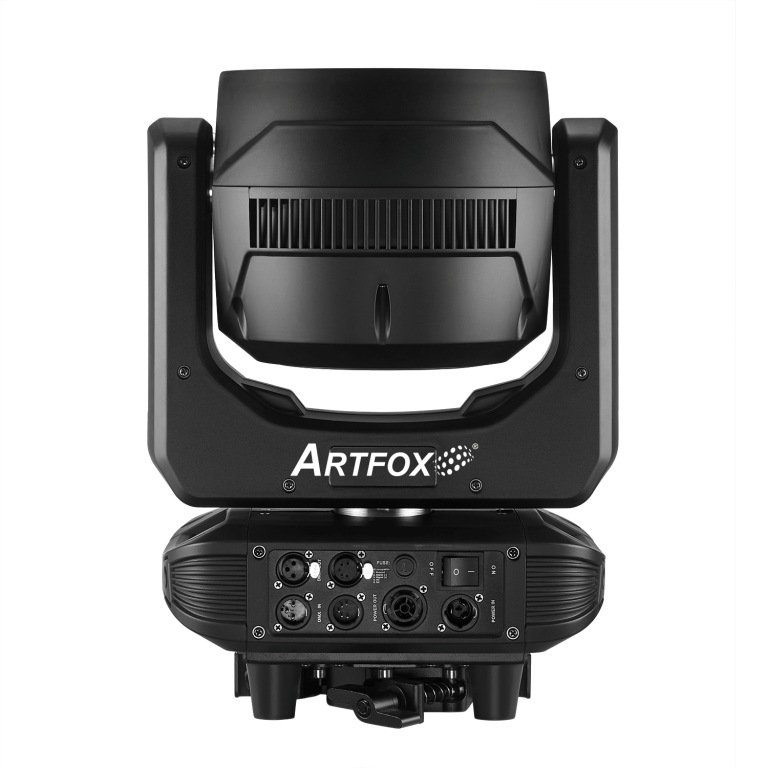

3 PIN AND 5pin XLR DMX In/Out
PowerCON TRUE1 Power In/Out

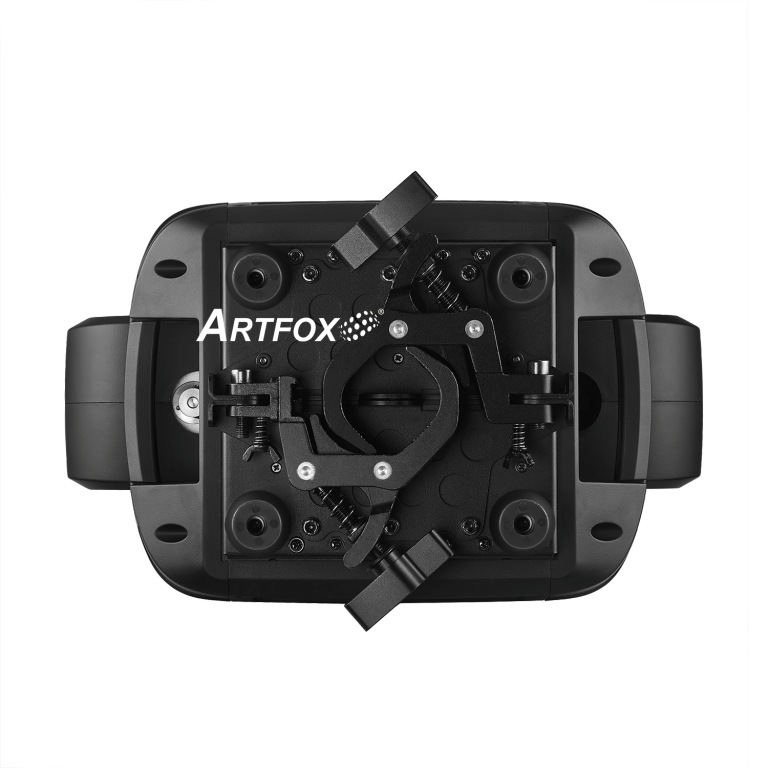

Folder Clamps

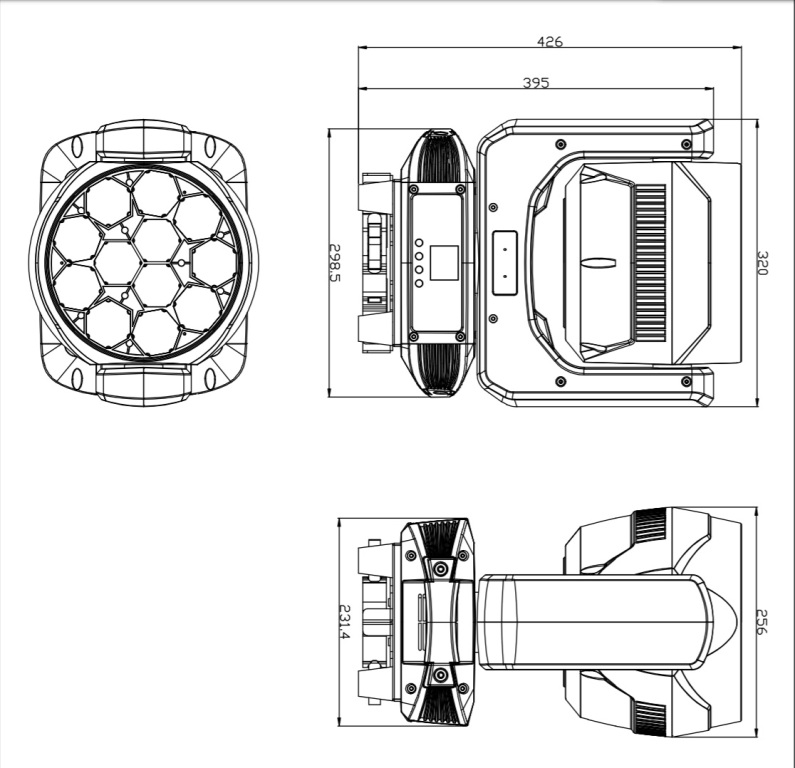

SIZE / WEIGHT
Length: 15.7 in (321mm)
Width: 9.8 in (250mm)
Height: 15.9 in (405mm)
Weight: 27.0 lbs. (12.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus pending | IP20
|
|
|
|
|
|
