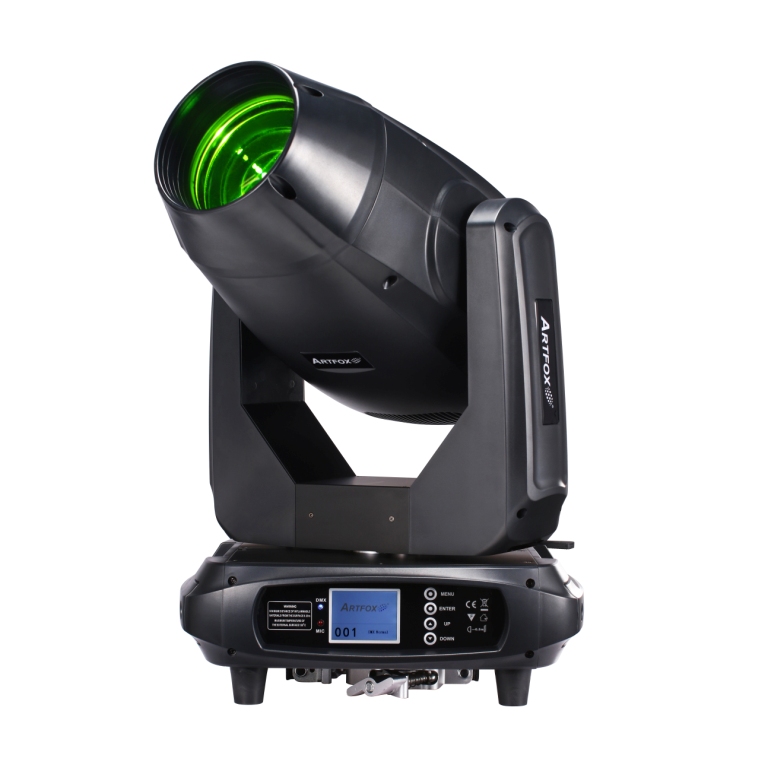

Matrix Hybrid CMY - LED 350w, Beam Spot Wash 3-in-1, CMY
|
Matrix Hybrid CMY is 350W LED engine CMY Hybrid Moving Head with CMY color mixing, 4 degrees beam, 4-36 degrees spot, frost for Wash.
Features:
All-in-one fixture with 4–36° zoom range
Get Narrow beam, spot, and wash effects from a single fixture
CMY color mixing enables you to craft an infinite number of colors
Motorized focus, zoom, and CTO ( color temperature optional)
2 rotating prisms (1 x 6-facet linear and 1 x 3-facet circular)
2 GOBO wheels (1 fixed metal and 1 rotating)
350watt LED engine yields enough output for most large venues and event productions
Light Source:
• 350W Cool White LED Engine
• 50,000 Hour Average LED Life,8,000K
Color:
• Color Wheel: 12 + Open ,half-color and rainbow effect
. CTO (color temperature optional(3200k-5600k)
• Full CMY Color Mixing
GOBOs:
• GOBO Wheel 1: 12 Fixed + Open (1 Beam Reducers Beam Mode)
• GOBO Wheel 2: 7 Rotating/Replaceable + Open (Size: 22.8mm; Viewable: 15mm)
• Modular design for easy servicing and GOBO replacement
Effects:
• Zoom Range: 4 ~ 36-degrees
• CTO: 3200k-5600k,Option
• Focus: Motorized
• Frost effect for wash
• Prism 1: Rotating 3-facet Circular
• Prism 2: Rotating 6-facet Linear Rotating
• Prism Layering
Connections:
• Power Input: Locking Power IN connection
• AC90-240v, 50/60hz
. RDM function
Control:
• Control Channels: 23ch,
• DMX Modes: 23chs, RDM (Remote Device Management)
• Control: 3-pin and 5-pin DMX
• Full color display menu
• Pan / Tilt Correction: Automatic
• Pan / Tilt Lock
• Pan / Tilt Range: 540˚ / 270˚
• Fine Tilt
• Pan/Tilt Speed: Fast to Slow
• Dimming & Fine Dimming: Electronic
Electrical:
• Input Voltage: 100-240V 50Hz/60Hz (Auto change)
• Power Draw: 400W (3.33A @ 120V; 1.81A @ 220V)
Dimensions/Weight:
• Dimensions (LxWxH): 13.5” x 15.7” x 27.1” / 345 x 400 x 690mm
• Weight: 52.8 lbs. / 24kg
|
|
|
|
|
|
