Main Categories > Professional Stage Lighting > LED Moving Head > Matrix 7x7     <<Prev  Next>>
Product Images

[click to enlarge]
LED Moving Head:49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1


LED Moving Head:49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1

LED Moving Head:49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1

LED Moving Head:49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1

LED Moving Head:49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1

LED Moving Head:49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1

LED Moving Head:49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1

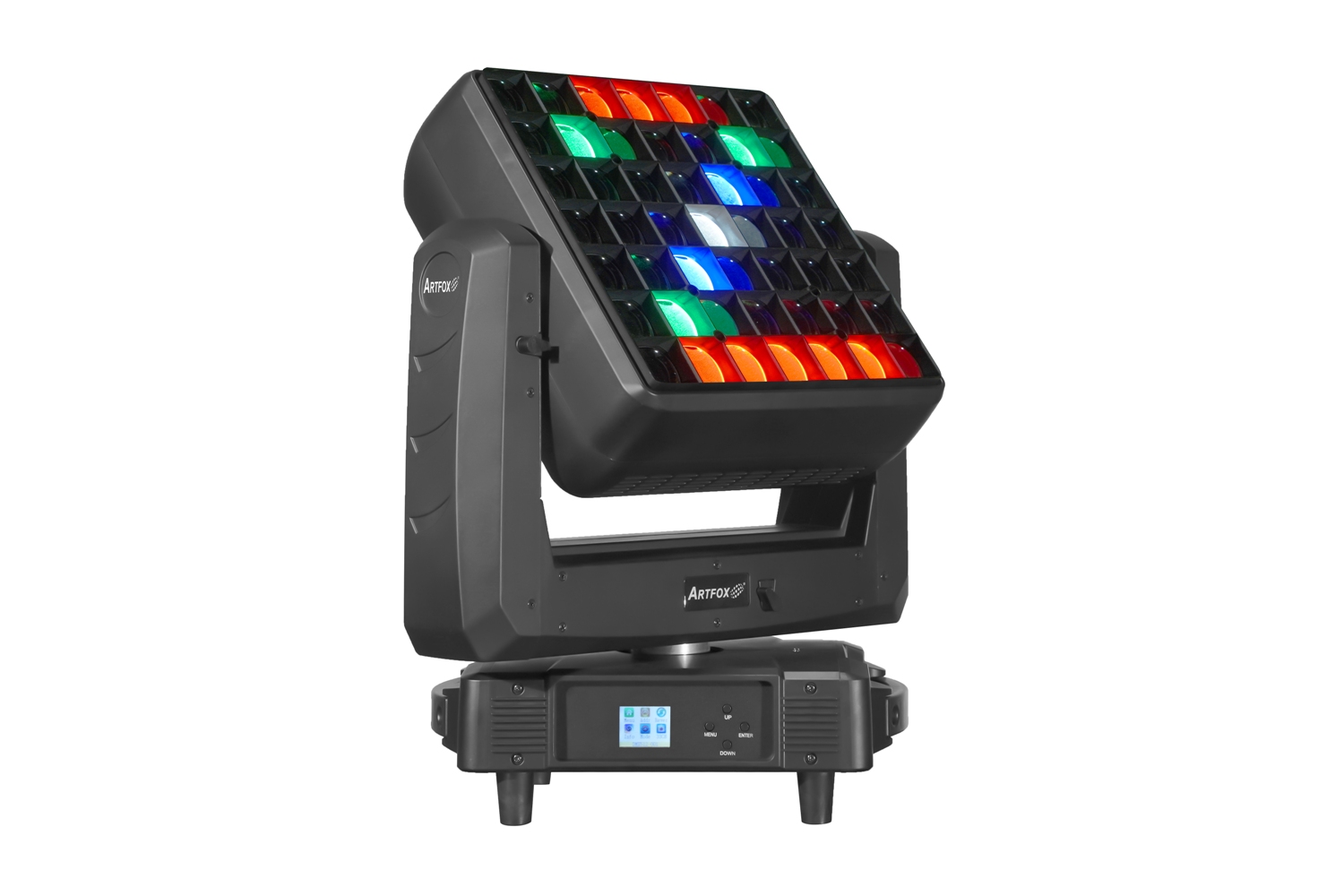

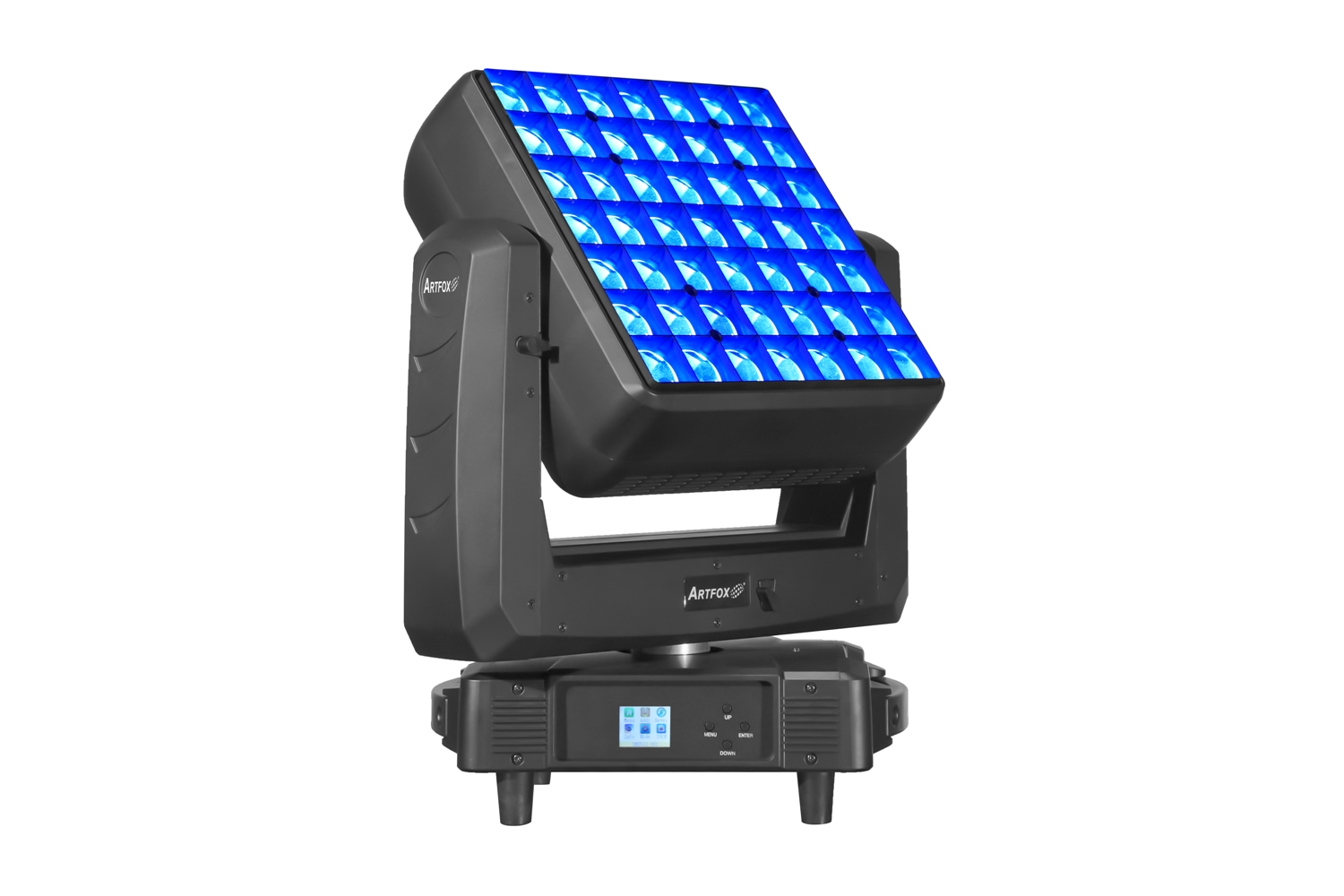

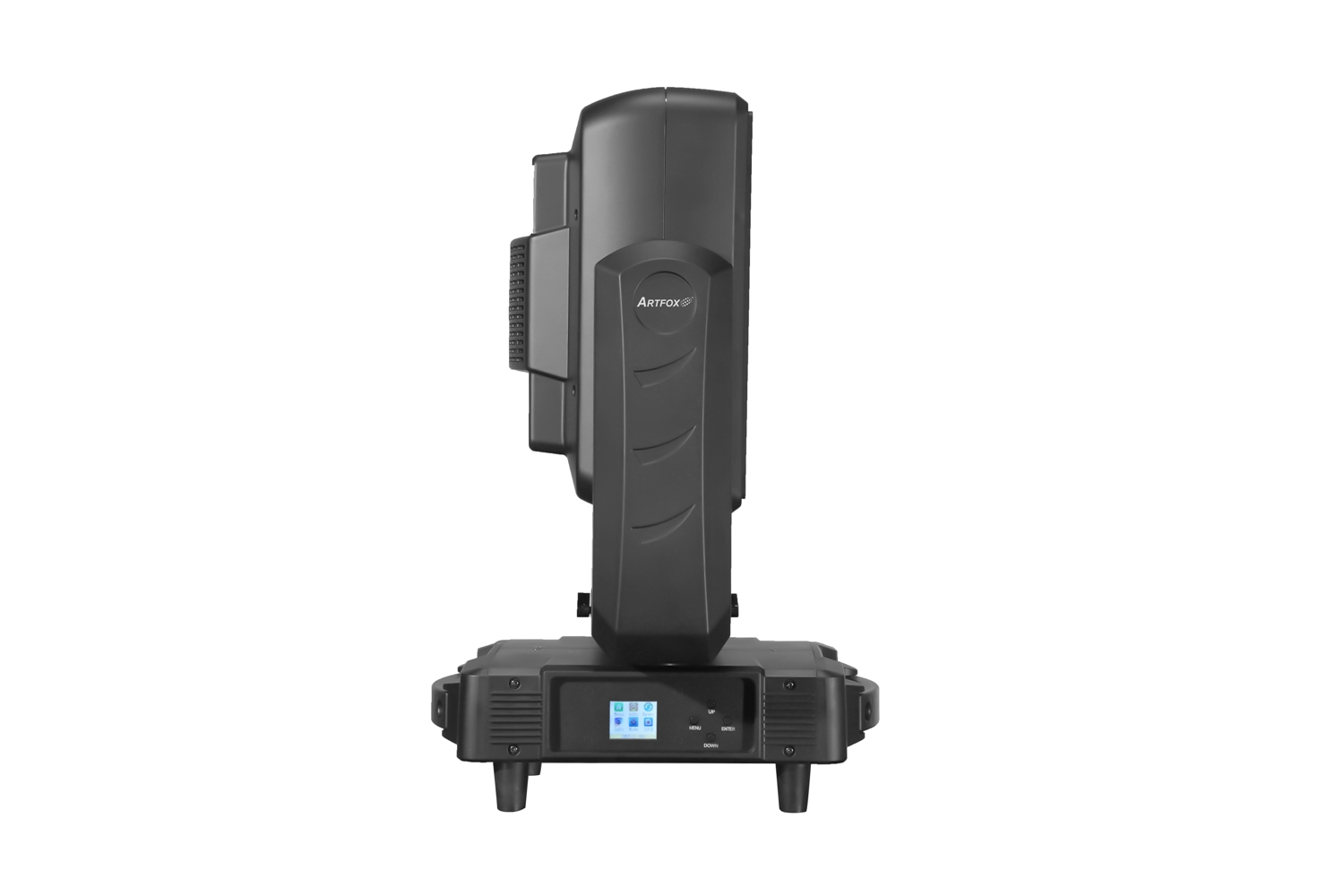

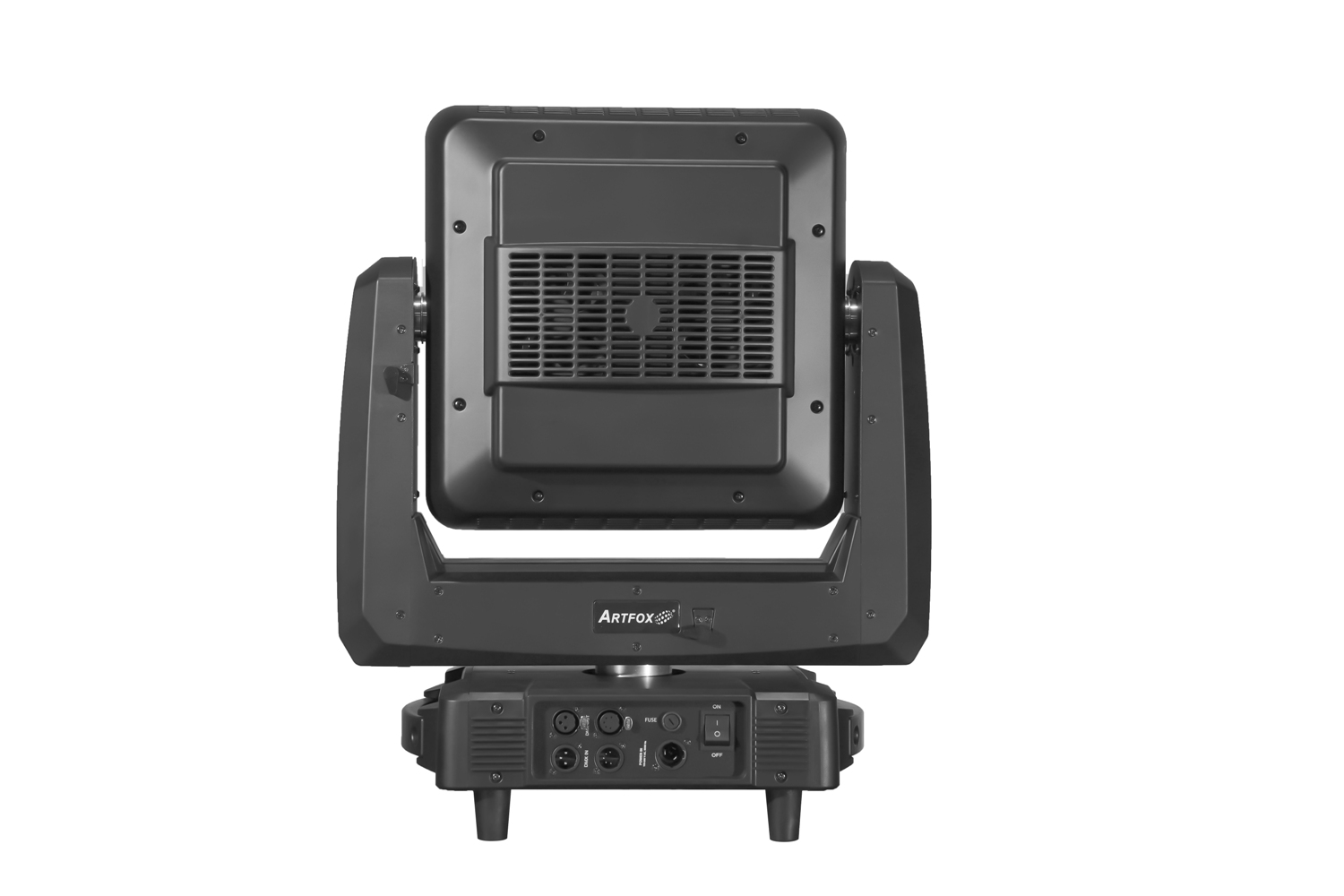

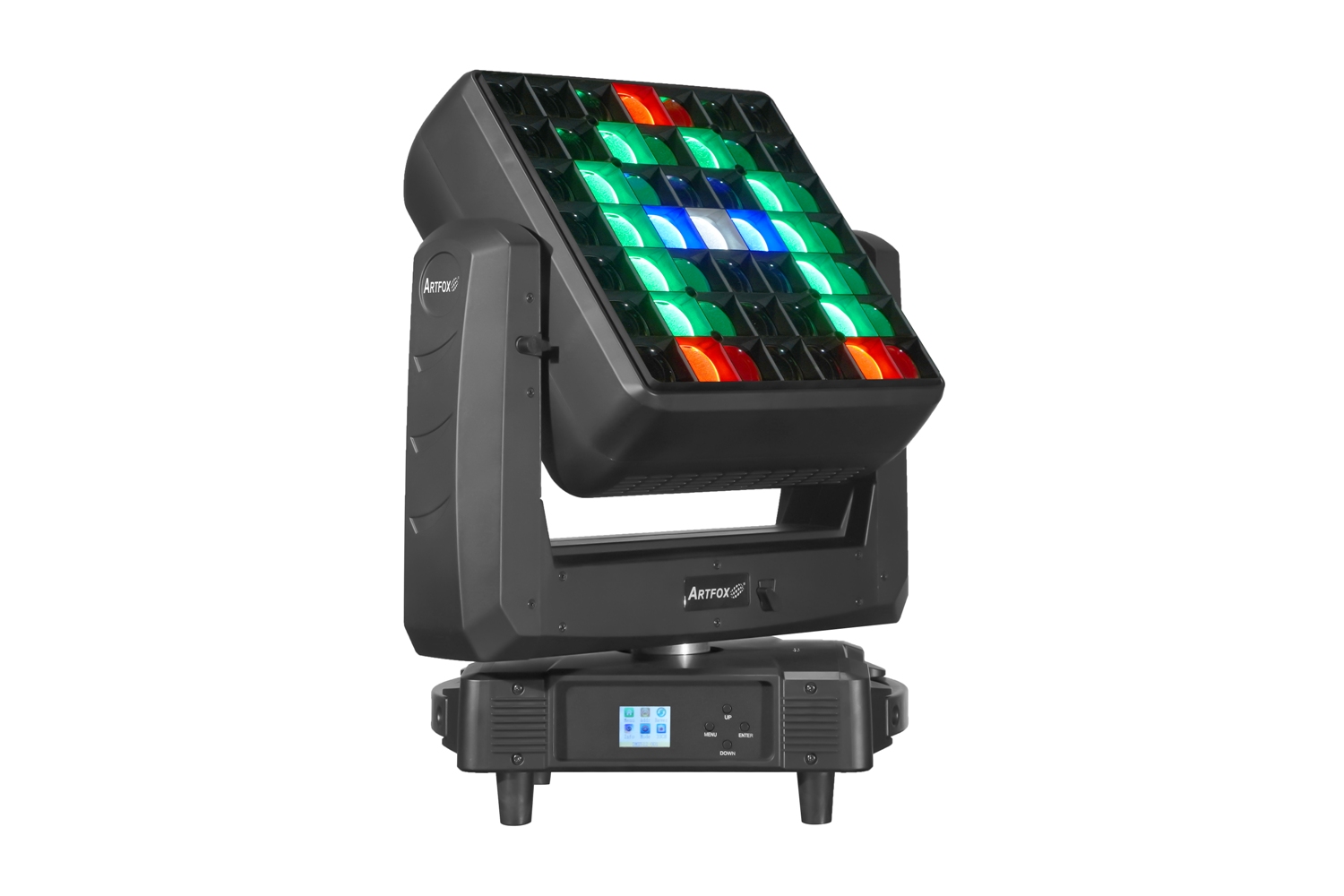

 Matrix 7x7  - 49x20w RGBW LEDs, Pixel tech, Artnet, Beam Wash 2-in-1

Matrix 7x7 is excellent design, Super bright 49x20w RGBW LEDs, Beam wash 2-in-1, Pixel tech + Artnet let can play images.

Excellent for stage, church, concert etc.

It is excellent good for background, wash light, beam light etc.

Features:
1. 49x20w RGBW LEDs
2. Beam Wash 2-in-1, linear zoom
3. Pixel Tech+ Artnet
4. infinity Tilt
5. Built-in Letters(A-Z) and Numbers(0-9)
6. Very quiet design

Technical Parameter
Light Sources: 49*20W 4IN1 RGBW LED
Beam Angle: 4°- 46° linear
Pan: 540°
Tilt: Infinity Tilt.

Power
Power Consumption: 760W±5%,power factor PF≥0.95; standby power: 26W
Power Voltage: AC 100-240V, 50/60Hz

EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves

Control
DMX Channel: 22/25/33/229/206 Channels
Control Modes: DMX512/Master-Slave/Auto Run/Music/Artnet


SIZE / WEIGHT
Dimension: 18.8"x10.7"x22.8" (477mm×272mm×579.5mm)
Net Weight: 49.5lbs (22.5 kg)
