Main Categories > Professional Stage Lighting > LED Moving Head > LED Beam 275w     <<Prev  Next>>
Product Images

[click to enlarge]

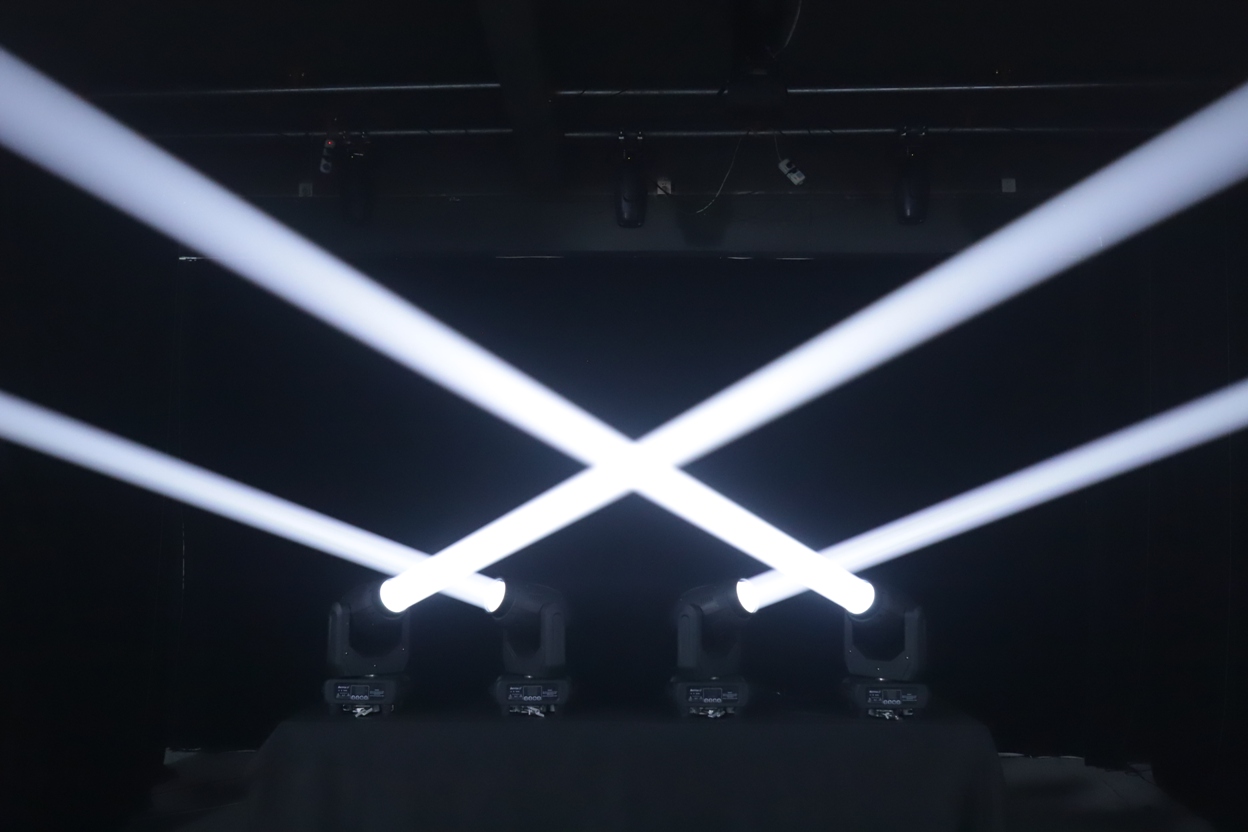

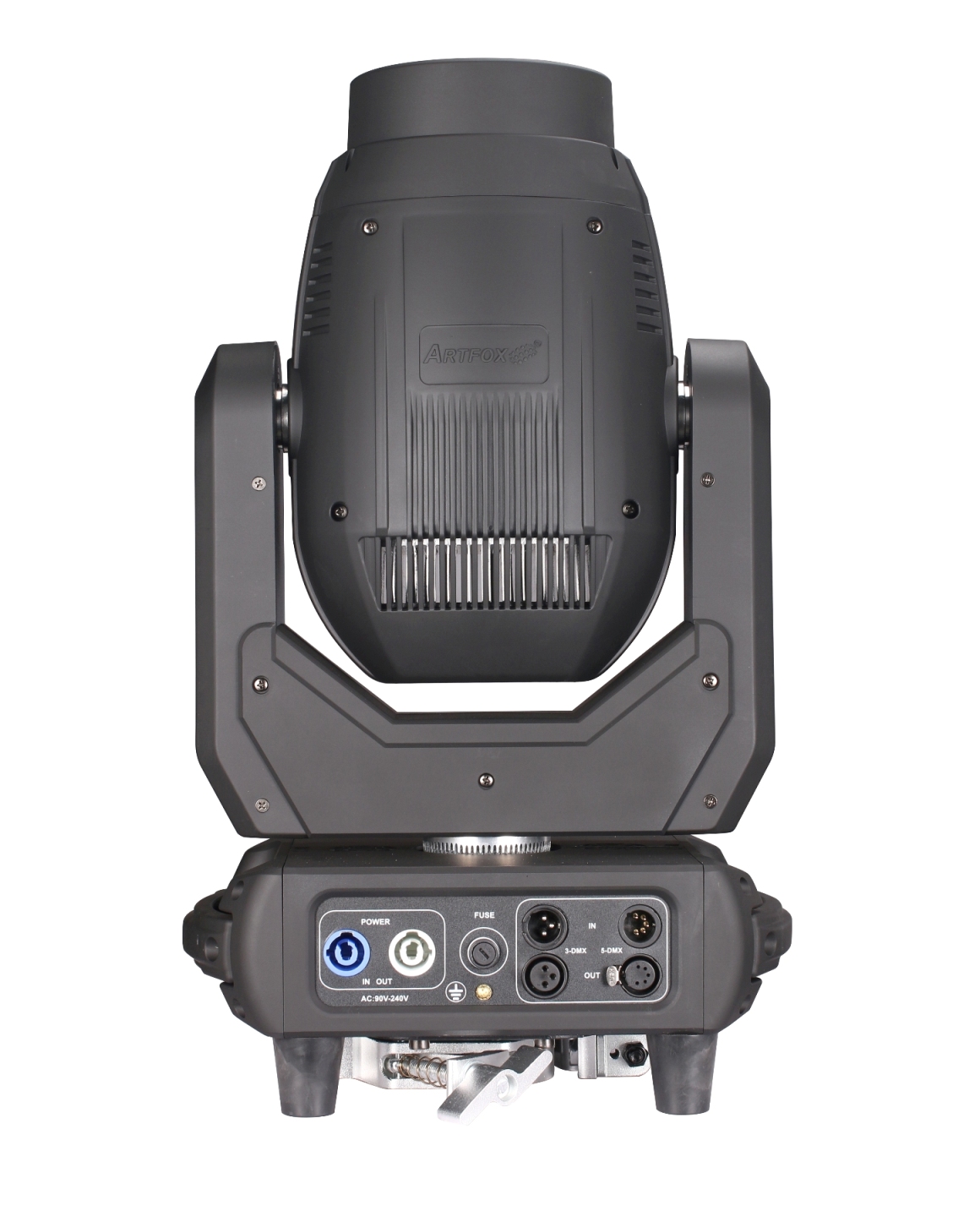

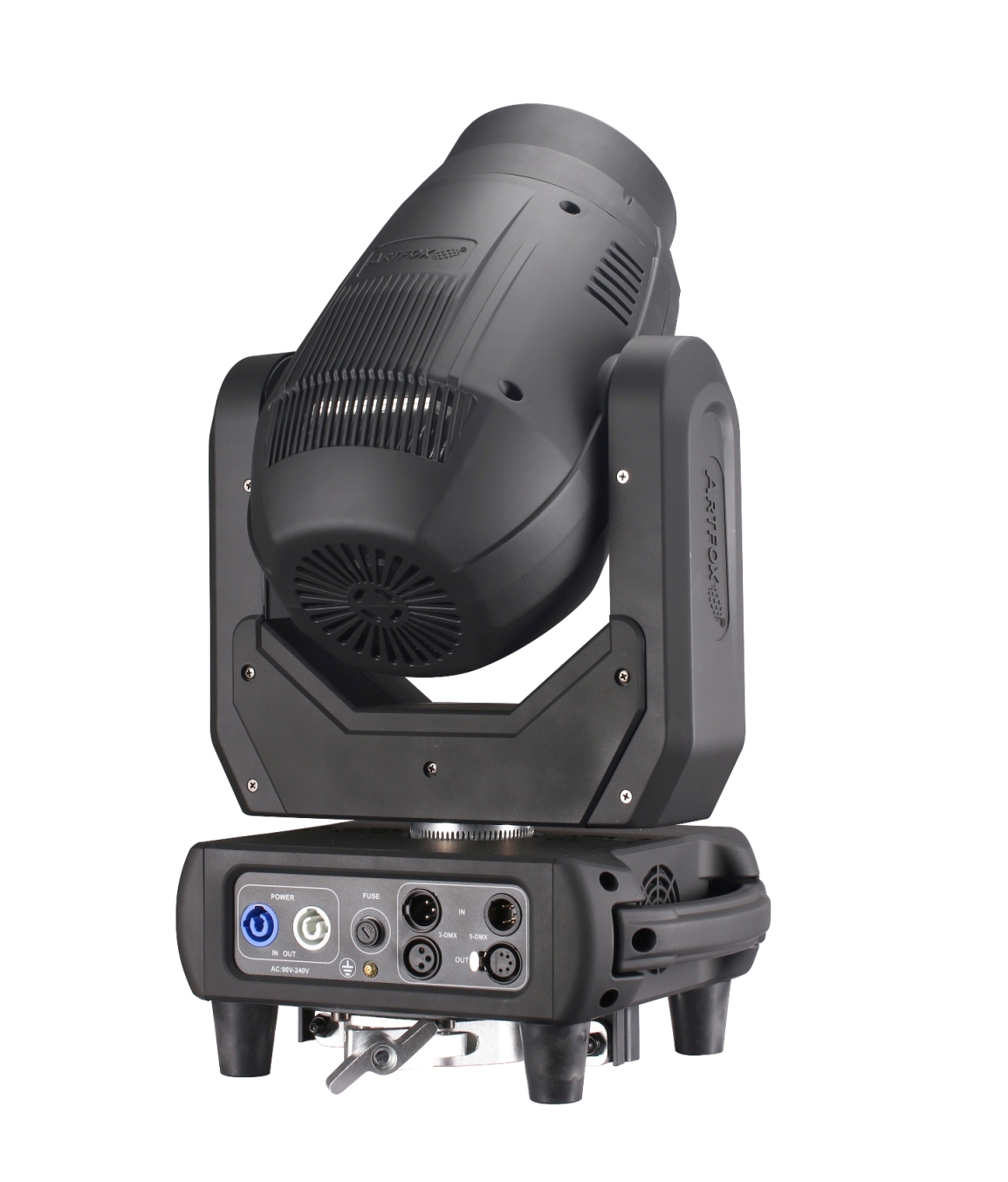

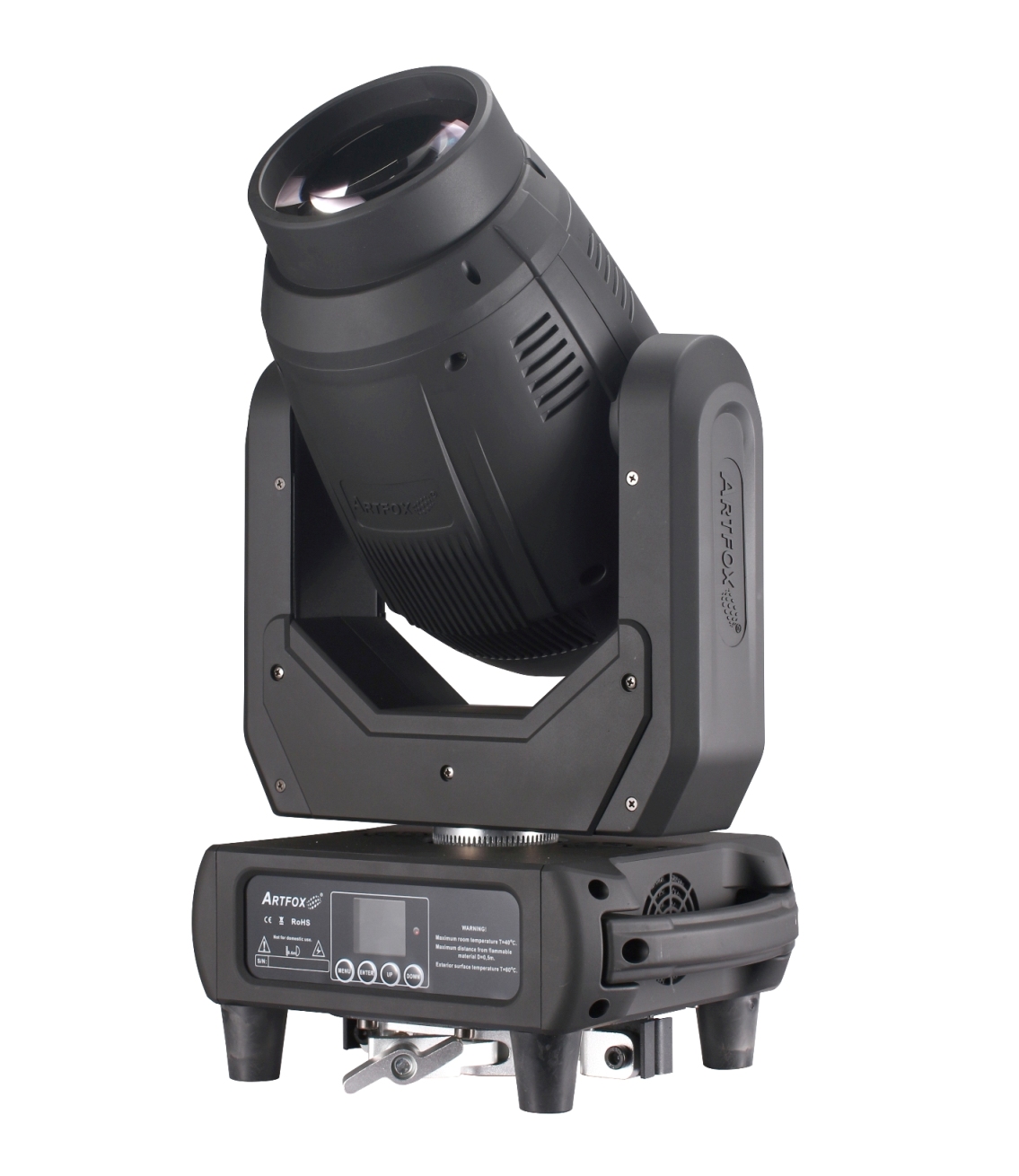

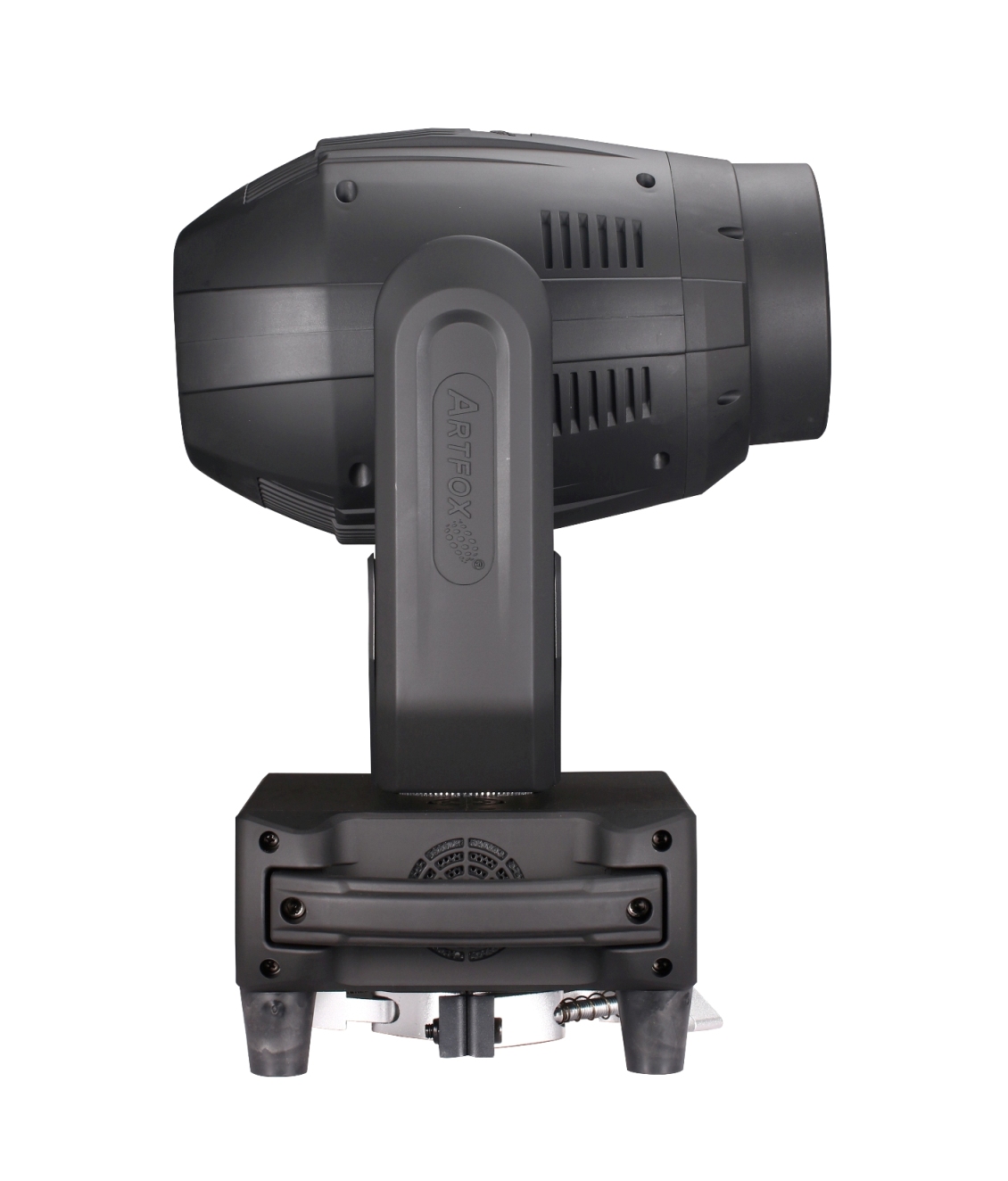

LED Moving Head:Very bright LED beam, 275W White LED


LED Moving Head:Very bright LED beam, 275W White LED

LED Moving Head:Very bright LED beam, 275W White LED

LED Moving Head:Very bright LED beam, 275W White LED

LED Moving Head:Very bright LED beam, 275W White LED

LED Moving Head:Very bright LED beam, 275W White LED

LED Moving Head:Very bright LED beam, 275W White LED



 LED Beam 275w  - Very bright LED beam, 275W White LED

LED Beam 275w is excelent LED beam light, it is very bright, beam angle is 3° only, it is new LED lamp technology, the beam is very bright.

FEATURES
275W Cool White Solid State LED Spot Luminaire
Beam Angle: 3°
Two gobos wheels
Two prisms:
8-Facet Rotating Prisms ( 2 direction)
Honeycomb Prism
3 Phase motor on Pan/Tilt
Frost
High Speed Mechanical Shutter and Strobe
Motorized Focus and Variable Dimming Curves
Flicker Free Operation For Broadcast TV and FILM

ELECTRICAL / THERMAL
Voltage: AC90-240V, 50/60HZ
Power Consumption: 350W Max

SOURCE
275W Solid State Cool White LED Engine
20,000 Hour Average LED Life
High light output,
24,000LUX@5M at White light at 4°
1900LUX@5M at White light at 30°


COLOR
Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and speed

GOBOS ( 2 gobo wheel)
1 Rotation Gobo Wheel: 7 gobos + white, wheel rotation and shake
1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake


EFFECTS
Two prisms:
8-Facet Rotating Prisms ( 2 direction)
Honeycomb Prism
Motorized Focus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves
Linear Frost
Linear Focus

CONTROL / CONNECTIONS
16/18 dmx channels, Sound active, Auto-Run, Master/Slave

Structure
4 Button Touch Control Panel
Full Color LCD Menu Display
3 Phase Motor on Pan/Tilt ( Ultra Fast ,precise silent movement)
1/4 turn fastening Omega Clamps
8 / 16 Bit Resolution Adjustable Movement
3pin / 5pin DMX In/Out
powerCON In/Out

APPROVALS / RATINGS
FCC| CE | ROHS | IP20

SIZE / WEIGHT
Dimensions: 12.6"x8.7"x18.9" 320(L)*220(W)*480(H)mm
Packing size: 14.4"x11"x23.6" 365(L)*280(W)*600(H)mm
Net Weight: 13.50kg (30 lbs),Gross Weight: 16.50kg (36.3lbs)Summary
