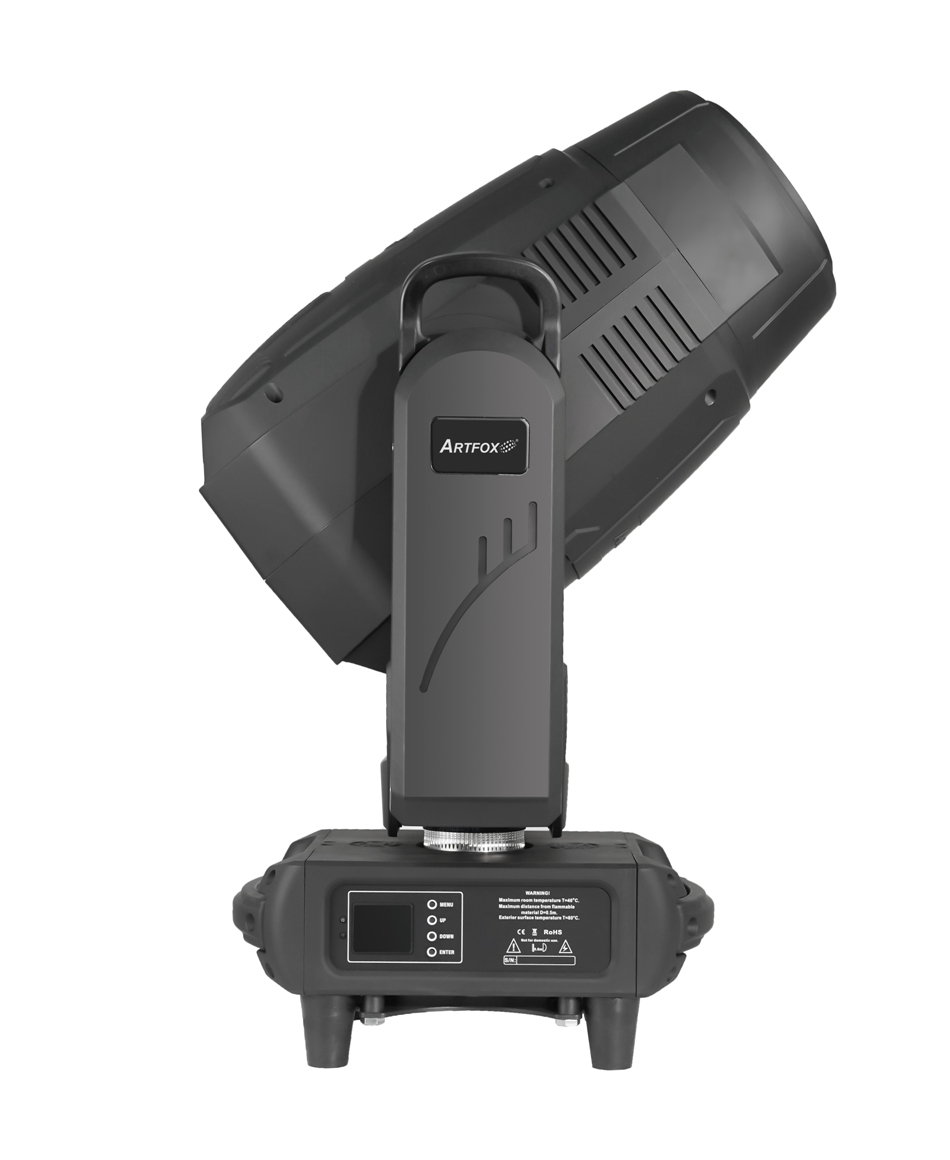

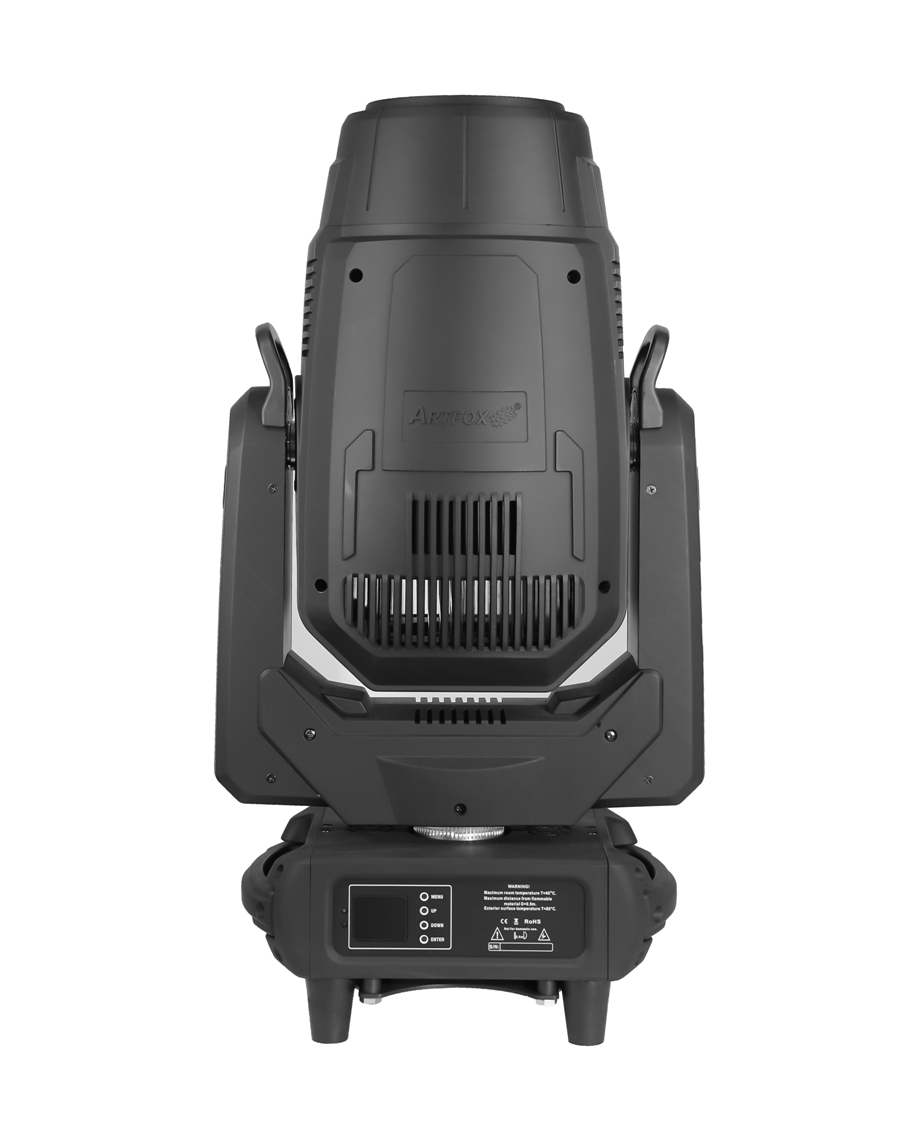

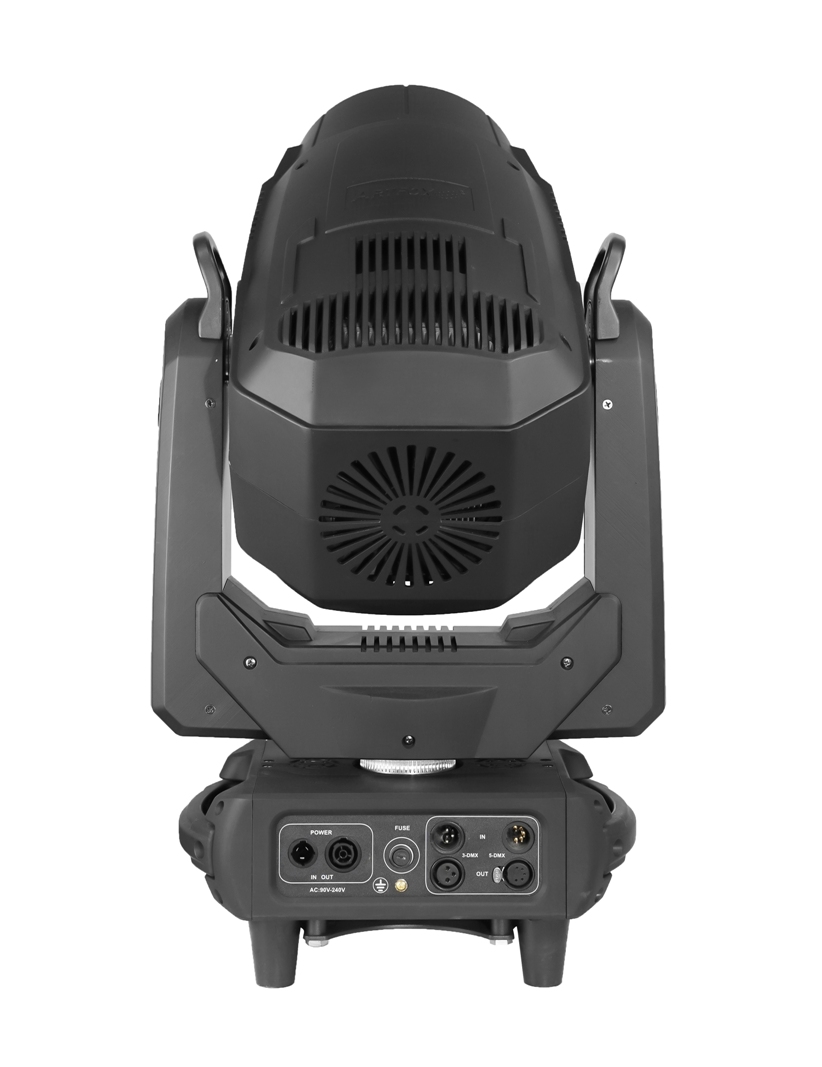

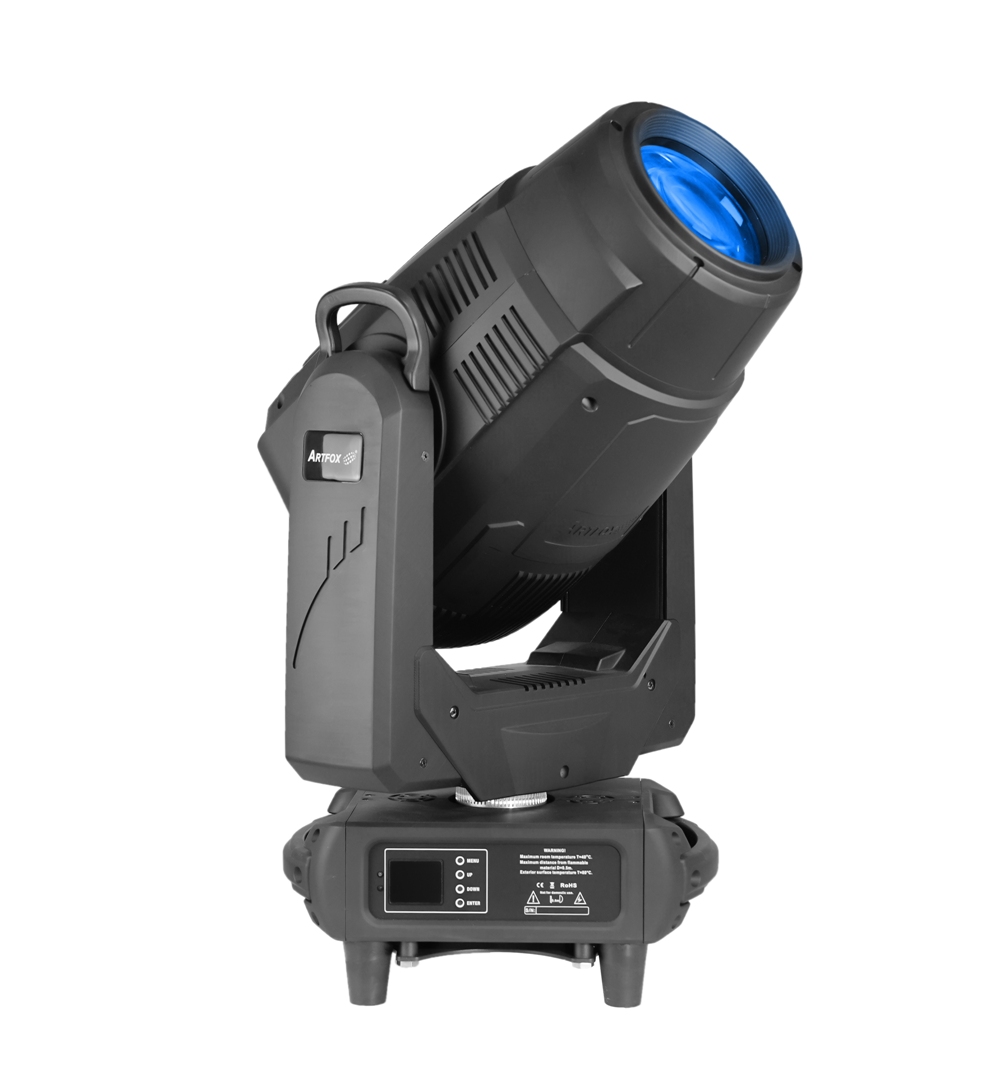

Matrix Hybrid CMY 460 - LED 460w, Beam Spot Wash 3-in-1, CMY, CTO, Rainbow
|
Matrix Hybrid CMY 460 is 460W LED engine CMY Hybrid Moving Head with CMY color mixing, 4 degrees beam, 4-36 degrees spot, frost for Wash.
Features:
All-in-one fixture with 4 - 36° zoom range
Get Narrow beam, spot, and wash effects from a single fixture
CMY color mixing enables you to craft an infinite number of colors
Motorized focus, zoom, and CTO ( color temperature optional)
2 rotating prisms (1 x 6-facet linear and 1 x 8-facet circular)
2 GOBO wheels (1 fixed metal and 1 rotating)
460watt LED engine yields enough output for most large venues and event productions
Light Source:
460W Cool White LED Engine
50,000 Hour Average LED Life,8,000K
Brightness
247,600 lux spot @2m at 4°, 20,300 lux spot at 36°
56,250 lux spot @5m at 4°, 3400 lux spot at 36°
31,500 lux spot @7m at 4°, 2300 lux spot at 36°
Color:
Color Wheel: 8+Rainbow+ Open
CTO (color temperature optional(3200k-5600k)
Full CMY Color Mixing
GOBOs:
GOBO Wheel 1: 14 Fixed + Open (1 Beam Reducers Beam Mode)
GOBO Wheel 2: 7 Rotating/Replaceable + Open (Size: 22.8mm; Viewable: 15mm)
Effects:
Zoom Range: 4 ~ 36 degrees
CTO: 3200k-8000k,Option
Focus: Motorized
Frost effect for wash
Prism
Prism 1: Rotating 6-facet linear
Prism 2: Rotating 8-facet Circular
Prism Layering
Connections:
Power Input: True1 in/out connection
AC90-240v, 50/60hz
RDM function
Control:
Control Channels: 25ch,AutoRun, Sound Active, Master/Slave
DMX Modes: 25chs
Control: 3-pin and 5-pin DMX
Full color display menu
Pan / Tilt Correction: Automatic
Pan / Tilt Lock
Pan / Tilt Range: 540 / 270 degree
Fine Tilt
Pan/Tilt Speed: Fast to Slow
Dimming & Fine Dimming: Electronic
Electrical:
Input Voltage: 100-240V 50Hz/60Hz (Auto change)
Power Draw: 600W (3.33A @ 120V; 1.81A @ 220V)
True1 in/out
Dimensions/Weight:
Dimensions (LxWxH): 14.4" x 8.7" x 26.8" / 367x220x680mm
Weight: 48.4 lbs / 22kg
|
|
|
|
|
|
