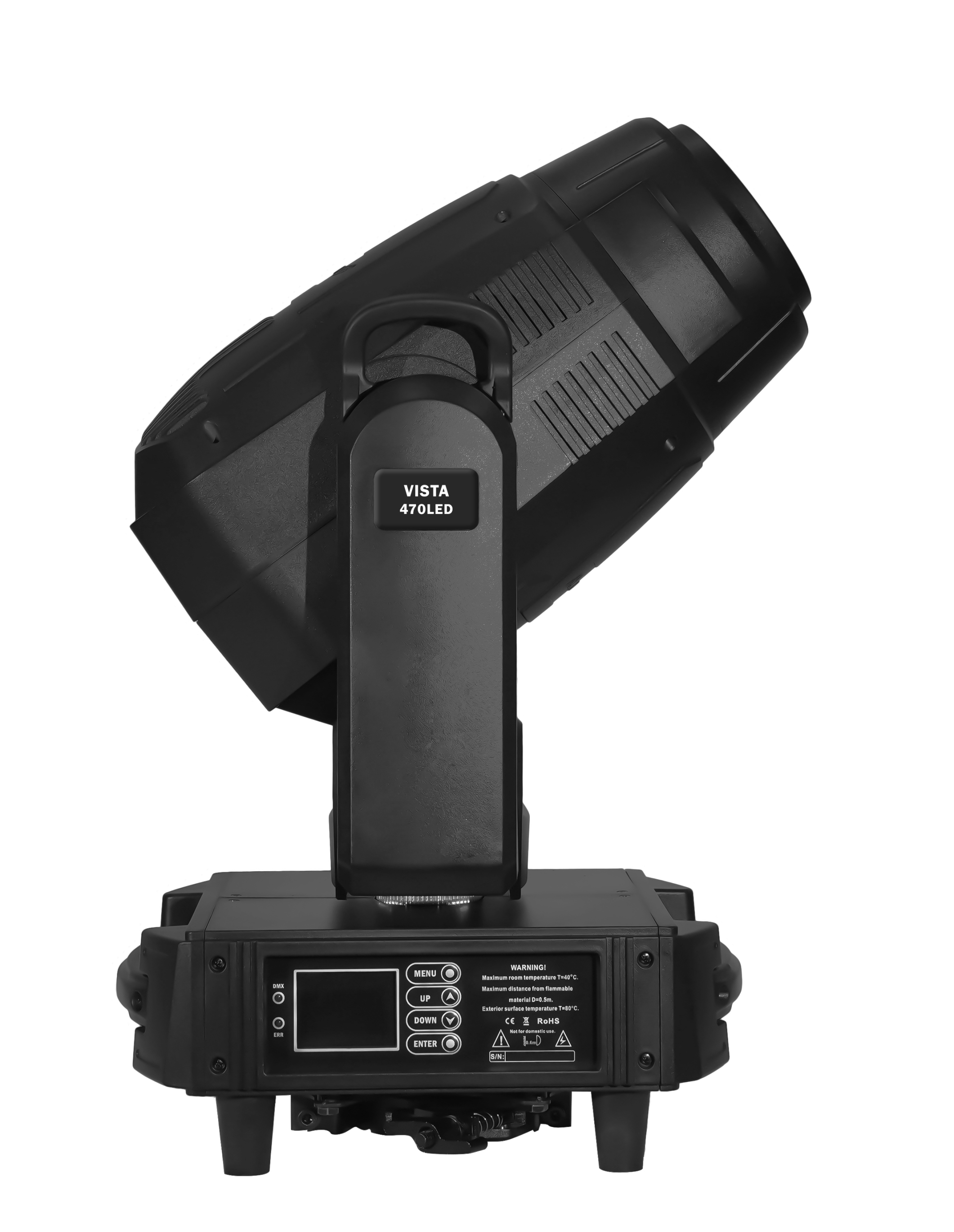

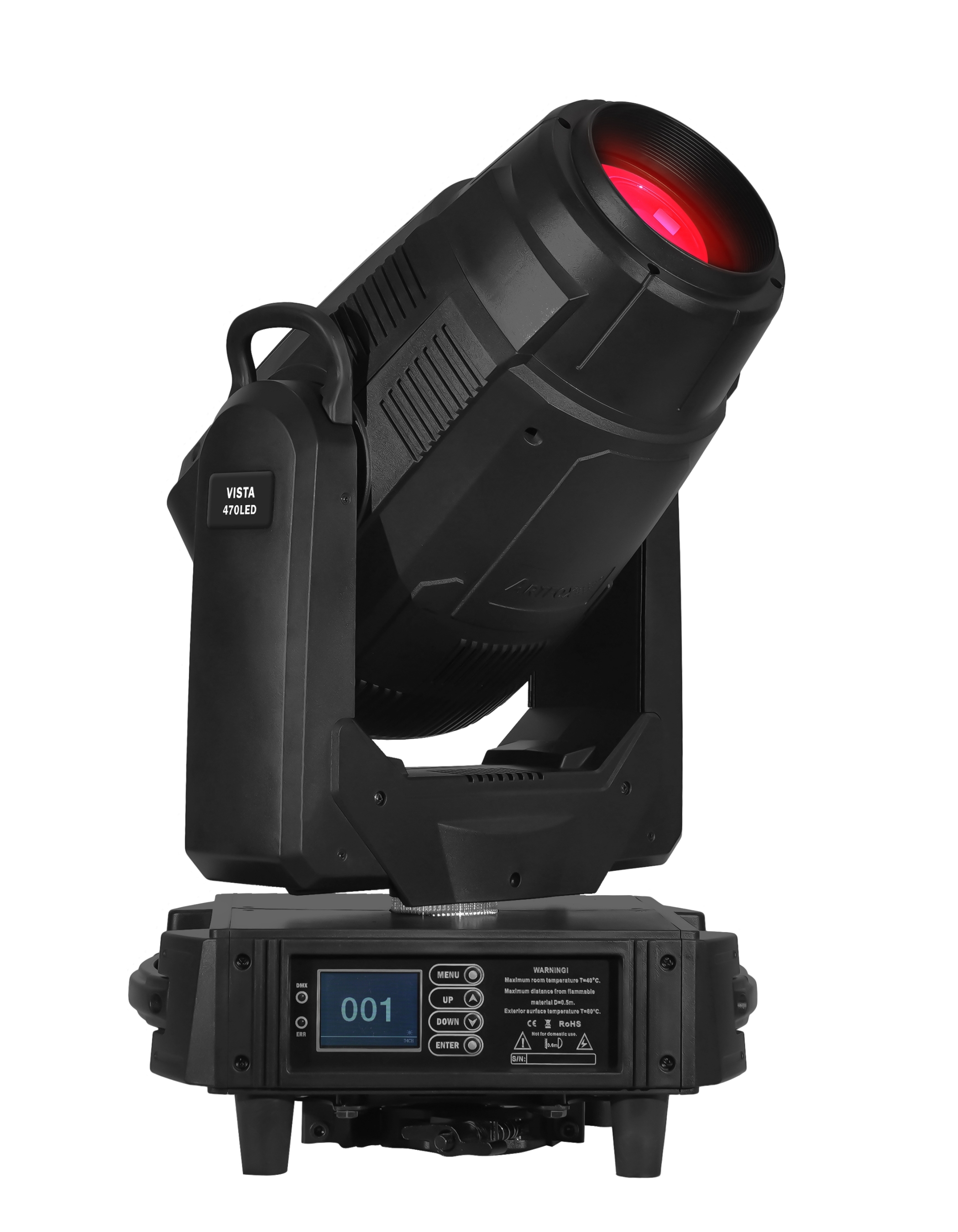

Vista 470 LED - 470w LED lamp, Beam spot wash 3-in-1, CMY, 6 prisms 15 prisms effect
|
Vista 470 LED is upgraded from Vista 10R, which is a very classic product
It is Beam Spot Wash Hybrid, With CMY color mixxing, With 6 prisms, with Super bright 470w LED lamp.
The optic features is very great
Features:
All-in-one fixture with 3 - 35° zoom range
very bright LED 470 white 8000k lamp
CMY color mixing
two prims wheel: 6 Prisms, 15 prisms effects
Color Wheel: 13 colors + Open
Fixed Gobo Wheel: 14 fixed gobos + Open
Rotating Gobo Wheel: 9 rotating gobos + Open
Effect Gobo: linear Dynamic wheel
Brightness
2m: 165,000 lux @ 3°, 20500 lux @ 35°
3m: 110,000 lux @ 3°, 9000 lux @ 35°
5m: 53,500 lux @ 3°, 3400 lux @ 35°
7m: 30,000 lux @ 3°, 2300 lux @ 35°
Electrical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 500W @ 220V
Power factor: PF>0.9
Light source specification:
Light source:470W 8000k high brightness Module LED
Life time:50000 hours

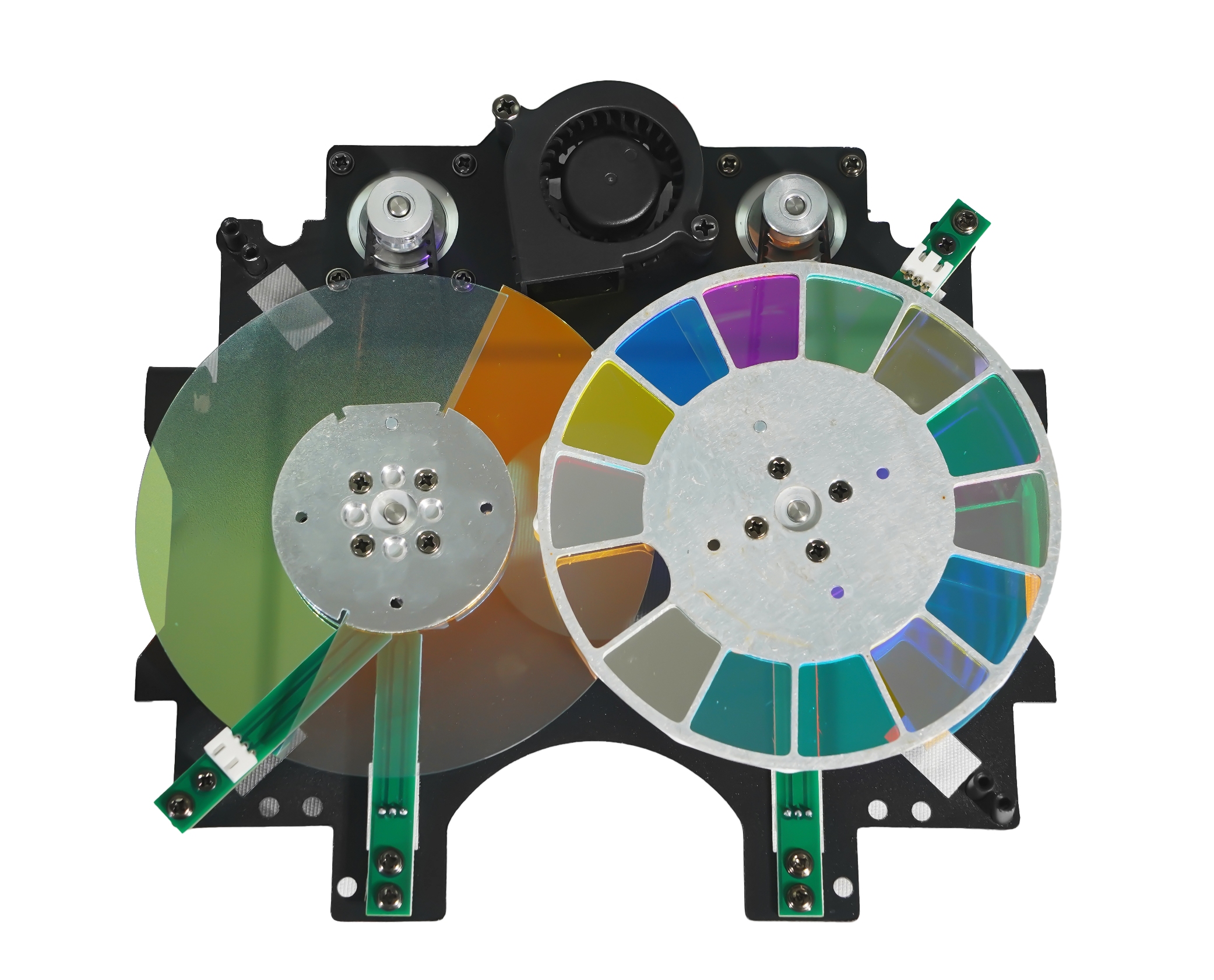

Colour:
1 color wheel: 13 colors + white
2.With C M Y function, color can be adjusted;
Can be mixed to make the color richer.

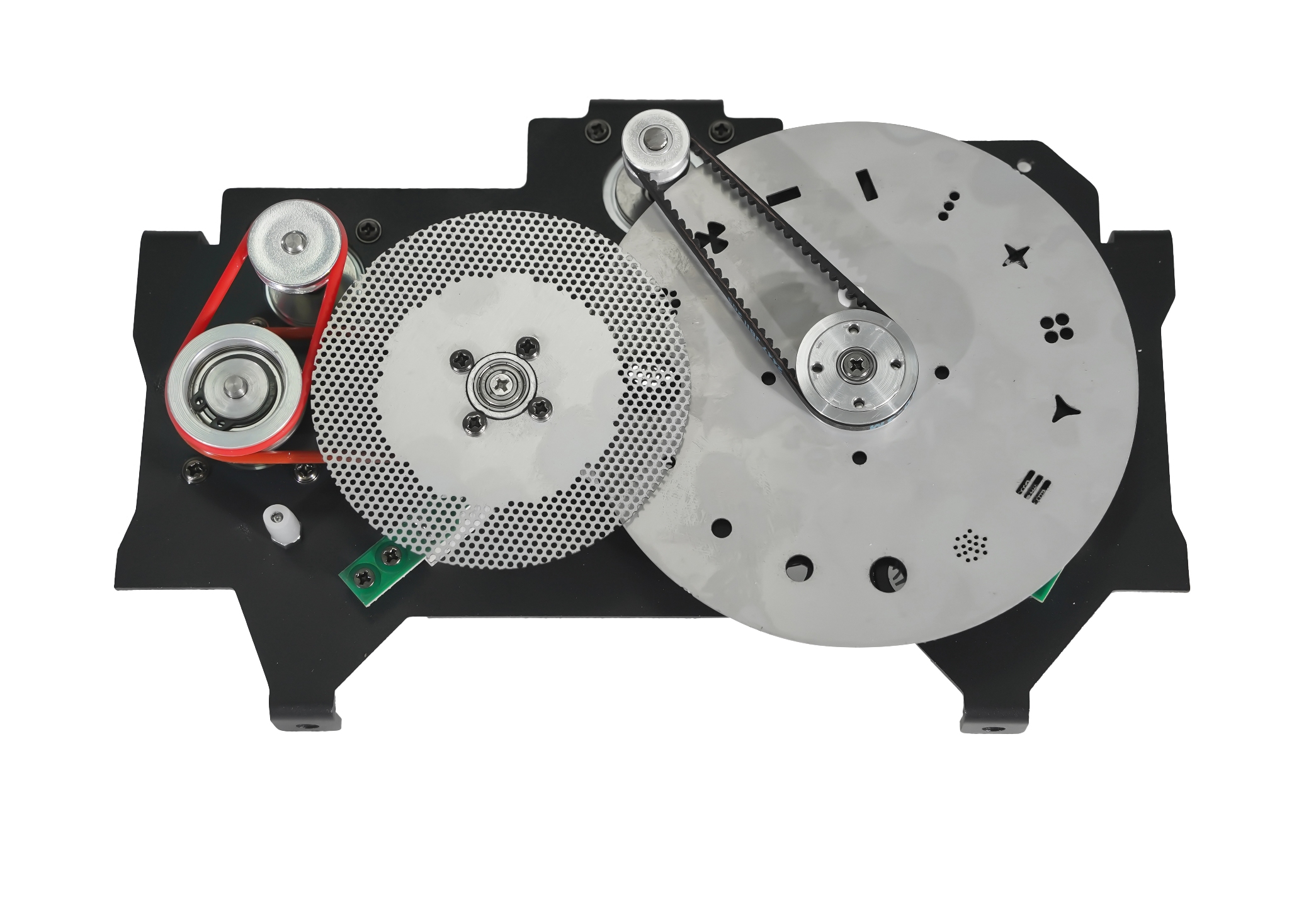

Gobo wheels:
Fixed Gobo Wheel: 14 fixed gobos + Open
Rotating Gobo Wheel: 9 rotating gobos + Open
Effect Gobo: linear Dynamic wheel
Prisms:
two prims wheels
6 Prisms, 15 prisms effects:
Prism wheel 1: 5 Circular Prisms, 3 Circular Prisms, 6 Linear Prisms
Prism wheel 2: 8 Circular Prisms, (8+8+16) Honeycomb Prisms, 6 Linear Prisms
Focus:
DMX linear focus adjustment, super smooth focus adjustment
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Frost:
Independent frost lens, softer light
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°
Beam Angle
3-35°
Control mode
DMX512, auto-run, Sound, master, slave
39/34CH channel mode

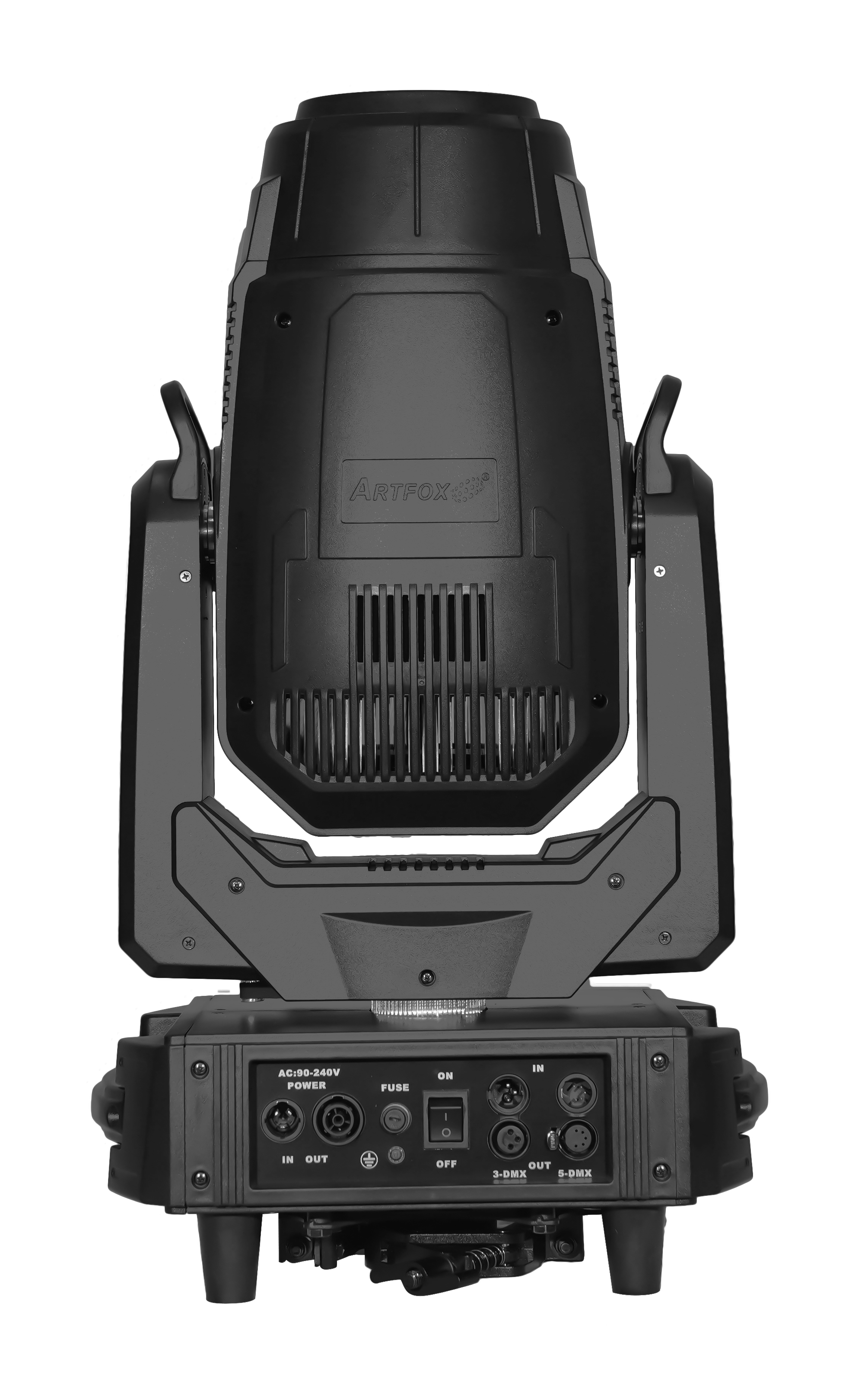

Connection
True1 in/out
DMX 3pin in/out
DMX 5pin in/out
Weight and Size
Net weight: 24.25kgs = 53 lbs
Size: WxDxH 401 x 265 x 682mm = 15.8" x 10.4" x 26.9"
|
|
|
|
|
|
