Main Categories > Professional Stage Lighting > Moving Head Light > Sky Beam 14RX     <<Prev  Next>>
Product Images

[click to enlarge]
Moving Head Light:295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos


Moving Head Light:295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos

Moving Head Light:295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos

Moving Head Light:295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos

Moving Head Light:295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos

Moving Head Light:295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos

Moving Head Light:295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos

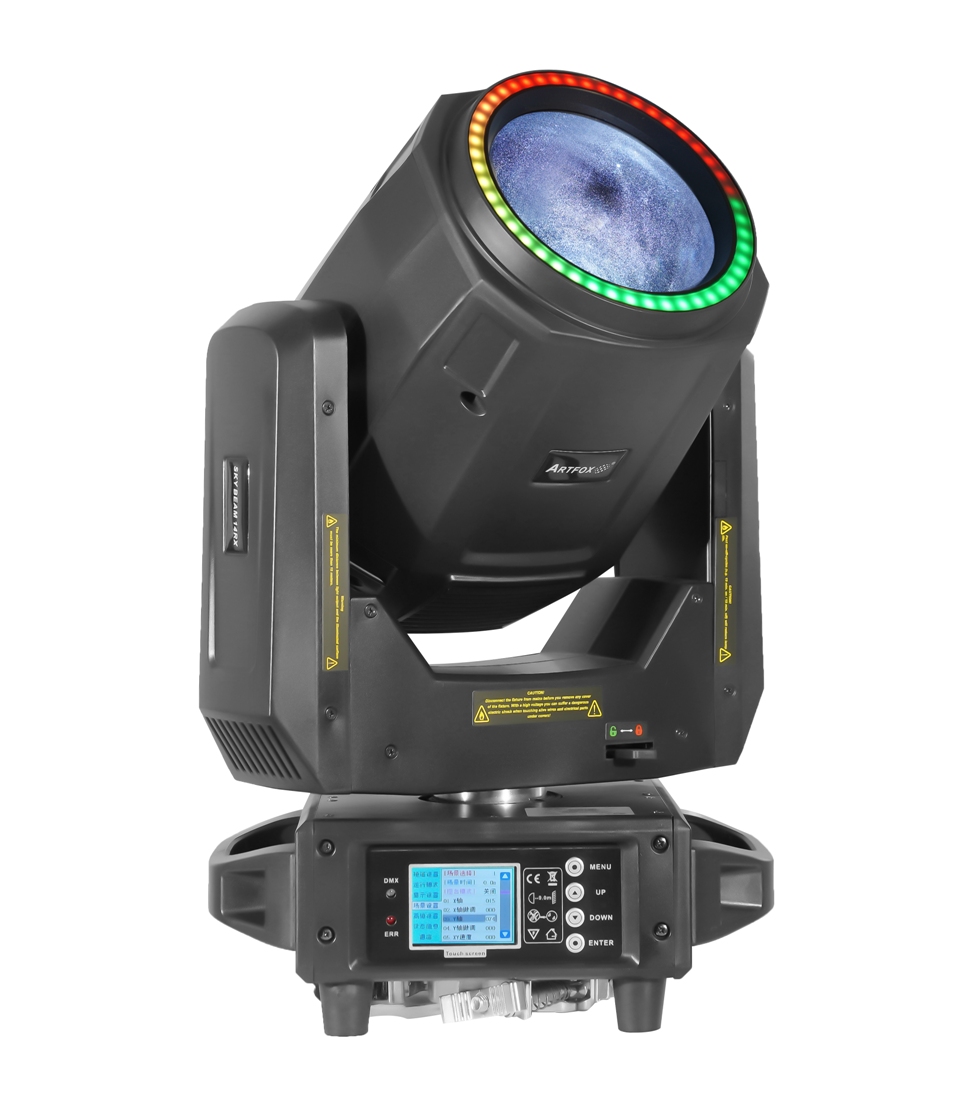

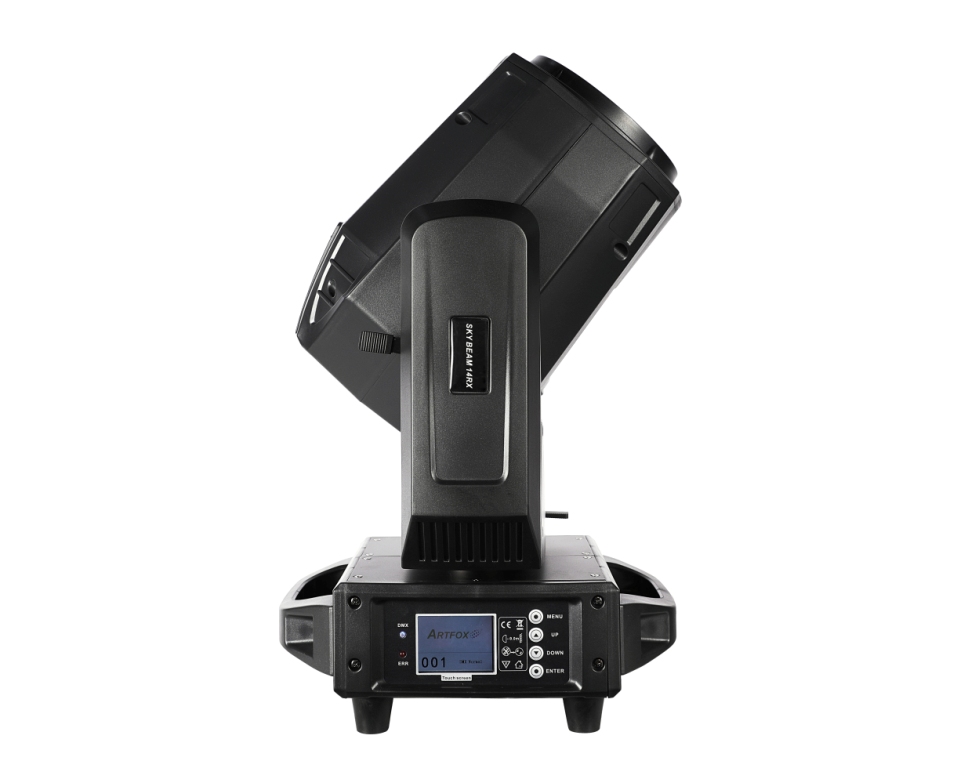

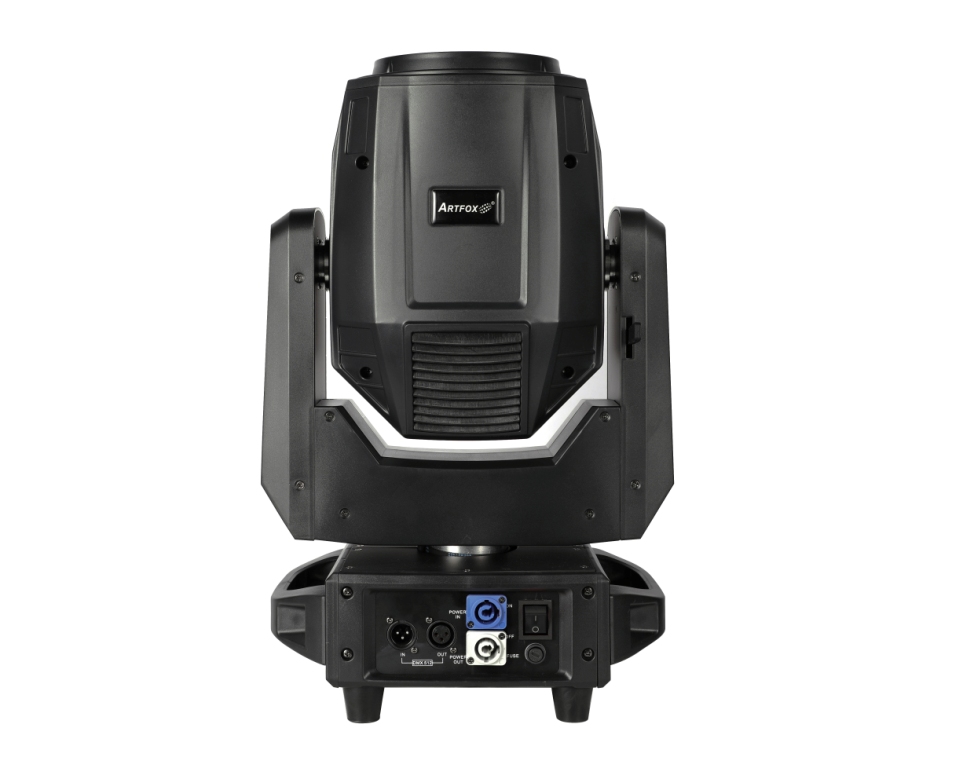

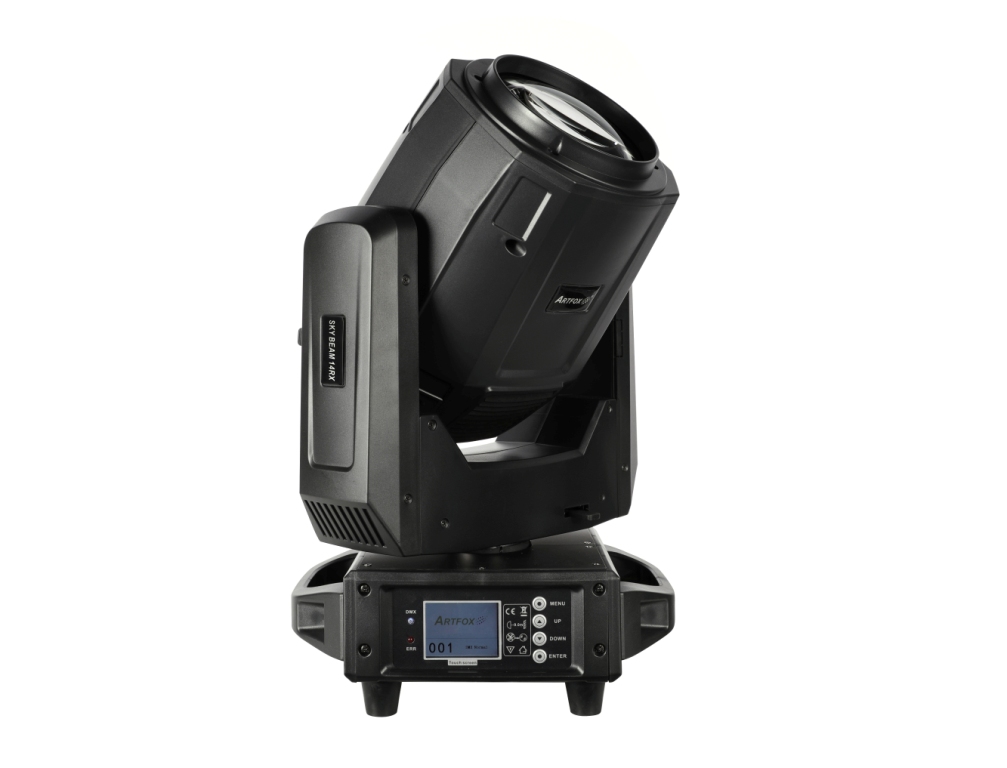

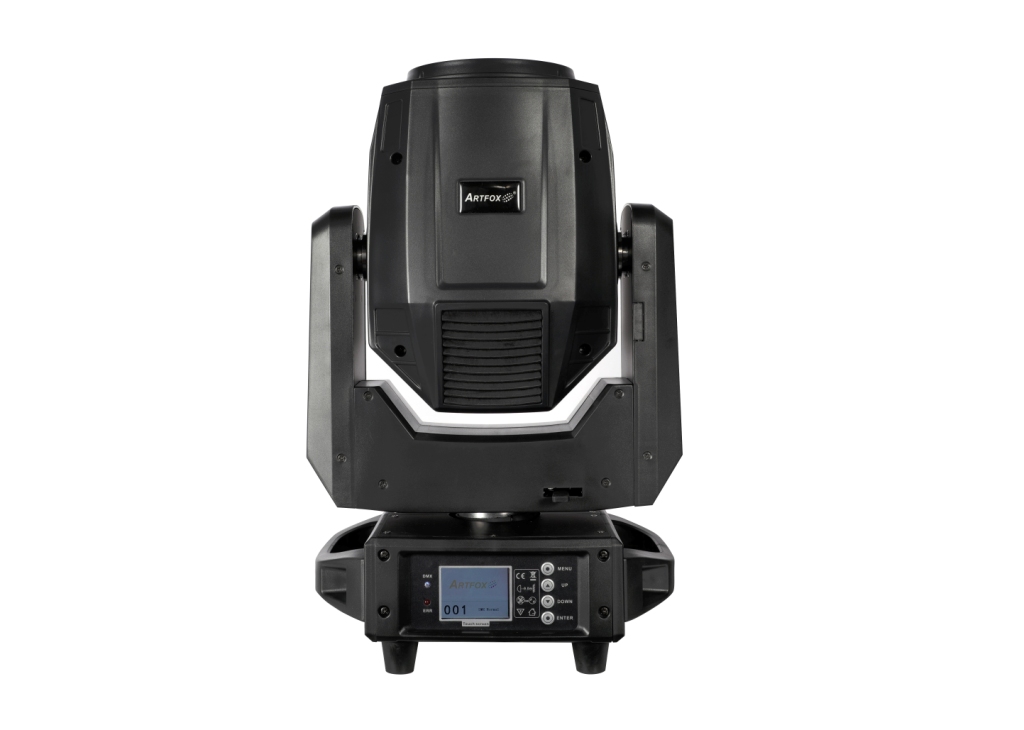

 Sky Beam 14RX  - 295w lamp, 6 Prisms, 15 Prisms effects, Rainbow effects, dynamic Gobos

Sky Beam 14RX is the next generation beam moving head powered by the brilliant 295w 14R MSD Discharge Lamp (1,500 hr.),It features the biggest optical lens to achieve Powerful wide range and sharp beam , Includes: 6 Prism FX, 15 prism effects ,Rainbow wheel, Frost Filter, Motorized Focus, 14 dichroic colors + white, 8 static GOBOs + open and 5 colorful glass gobos.
Sky beam 14RX features awesome 3D dynamic Prism effects, It features 2 Prism Wheels, total 6 Rotating prisms, 2 Dynamic 3D Prism, 15 kinds of Combined Prisms effects;

Features:
R14 295w lamp
Two Prisms wheel ( total 6 prisms, 15 prisms effects. )
6 colors Rainbow Effects
Beam Angle: 1.8°
Frost
13 fixed gobos (8 fixed gobos + 5 glass gobos) + Open
13 colors + Open
Touch color screen
PowerCon in/out

Light Source:

• 295W R14 LL MSD Discharge Lamp (1,500 hr.)
• Color temperature: 8000K


Color Wheel:

• 13 dichroic colors + white (Includes CTO, CTB & UV)
• Indexable color wheel for split colors

GOBO Wheel:
• 8 static GOBOs + 5 Glass colorful gobo +open
• GOBO Shake Effect

2 Prism Wheel:
• 6 Rotating prisms, Dynamic 3D Prism, 15 kinds of Combined Prisms effects;
. Wheel 1: 16-facet Circular +6 -facet Linear + 6&12 facet Dynamic 3D Prism
Wheel 2: 32- facet Circular + 6-facet Linear+ (8+16+24) facet Dynamic 3D Prism.

Control:
• 2 DMX Channel Modes: 14/18 Channels
• Touch Screen with 4-button function menu
• Control Mode: DMX512, Auto-Run, Sound Active
• 0-100% smooth dimming
• Various strobe speeds

Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)

Connections:
• DMX Connections: 3-pin or 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: Powercon In & Out

Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 360W (@120V),

Dimensions & Weight:

• Dimension: 13.8” (L) x 13.5” (W) x 22.25” (H) / 350 x 343.5 x 565mm
• Weight: 34.1lbs. / 15.5kg.

What’s Included:

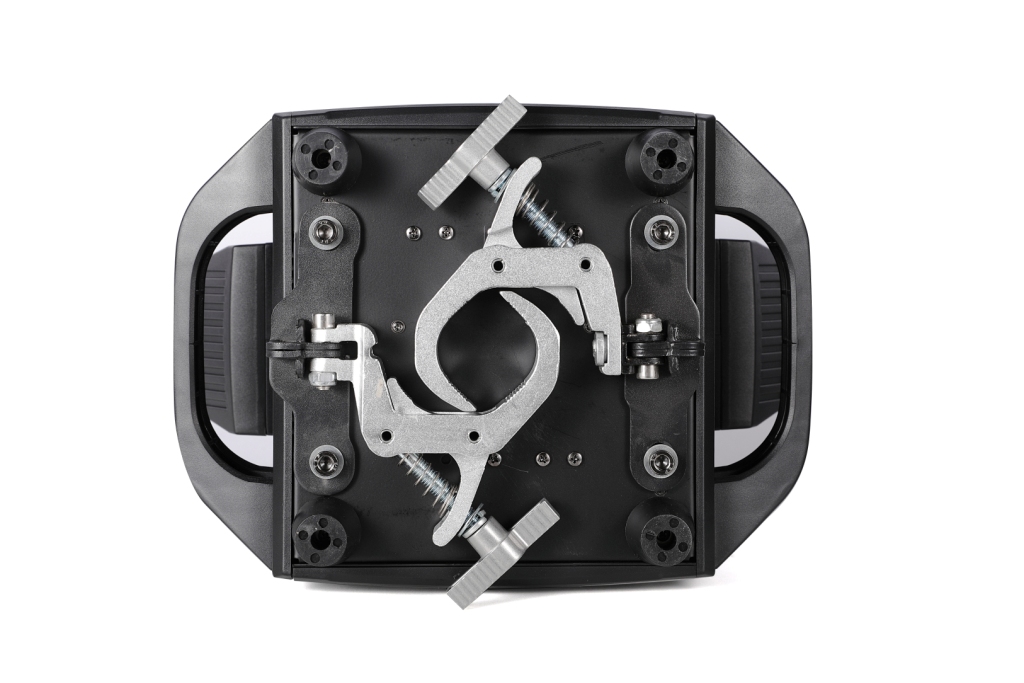

• Folding Clamps
• Power cable & Date Cables
