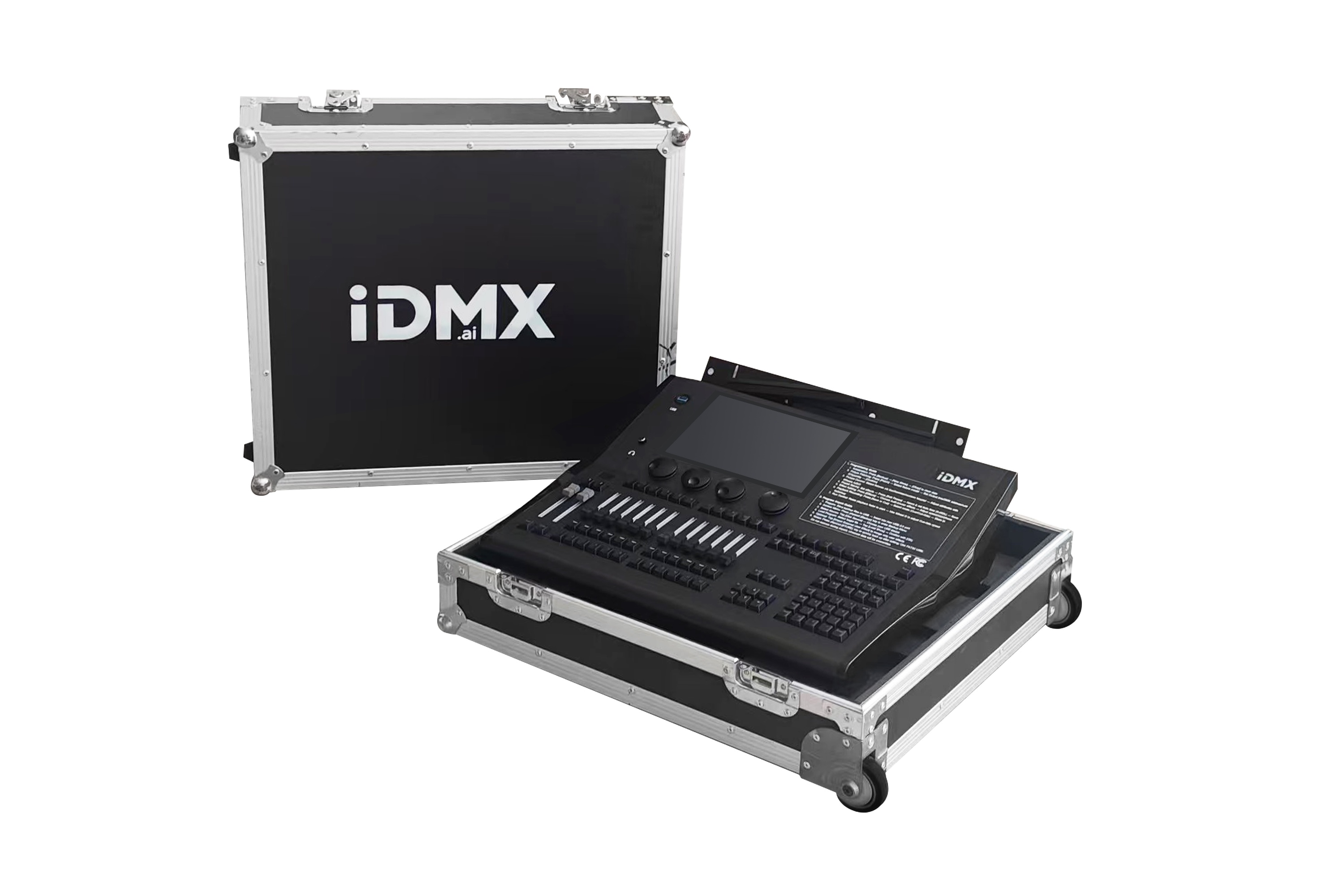

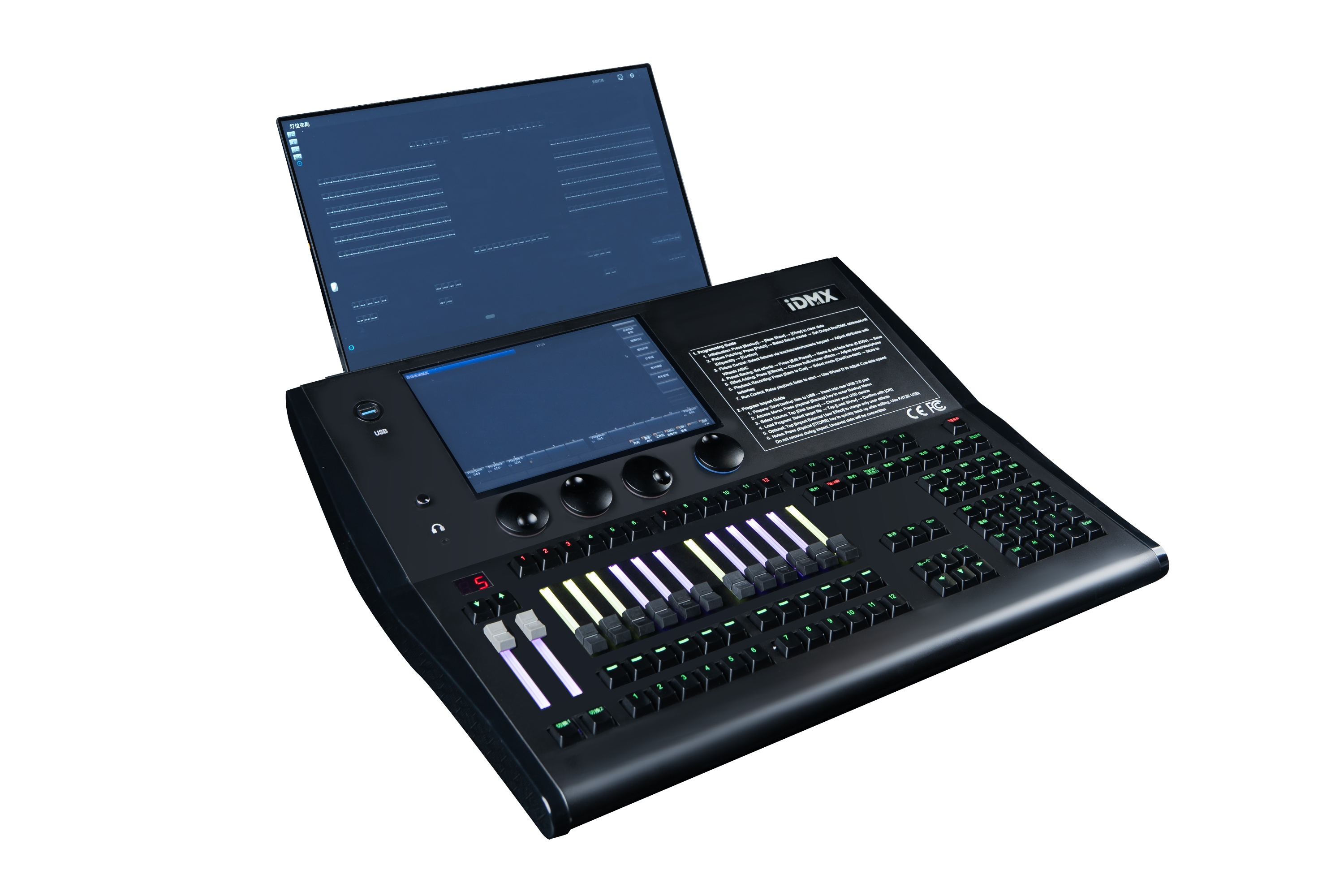

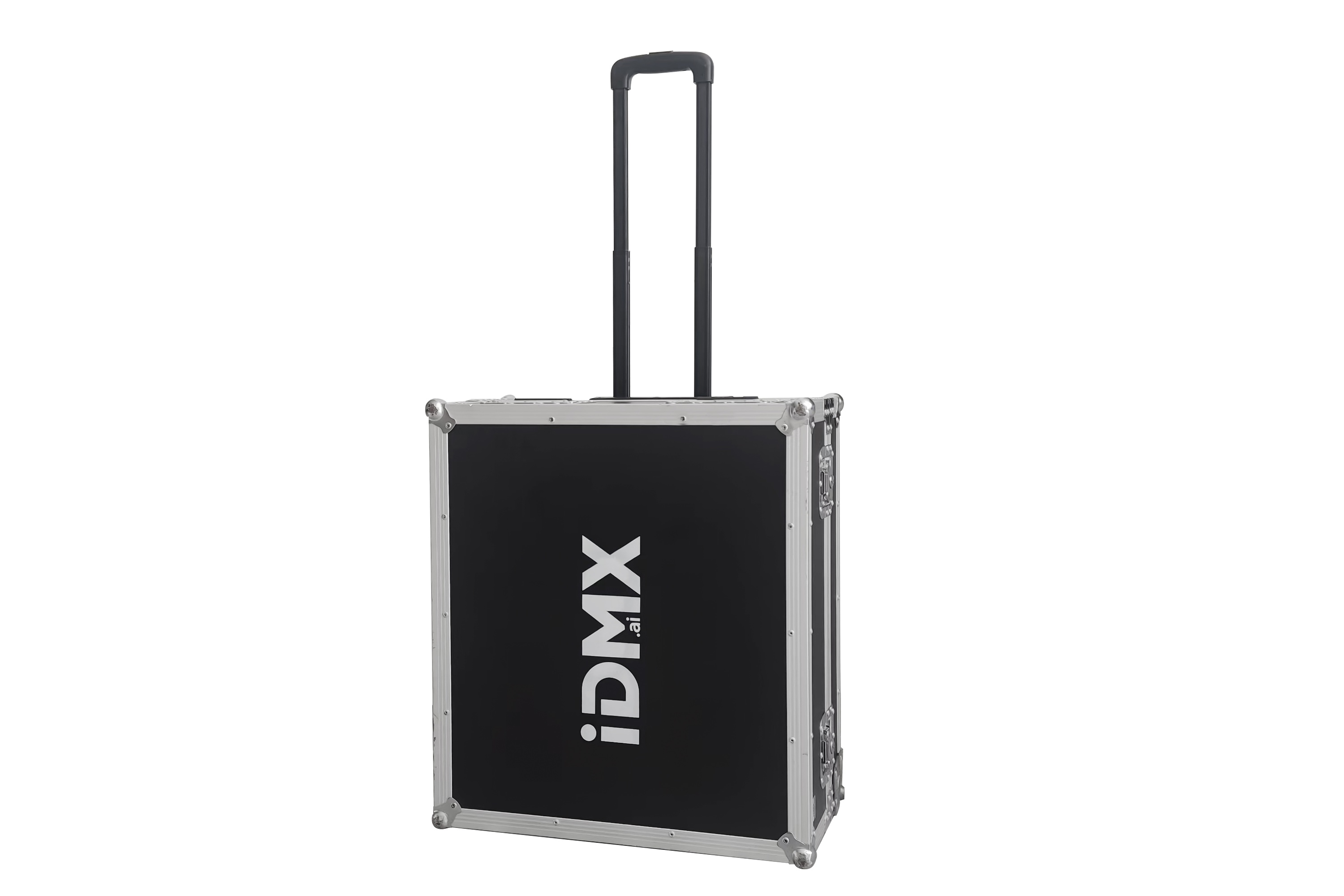

Product Images [click to enlarge]  iDMX AI Console  - Two touch screen,Fast and Easy programe, Max 8 Universes, 4096ch Main Parameter: Universes: 2 built-in dmx, 8 by Artnet 4096ch maxiuum Two touch screen: 10.1" on the console + 15.6" extra touch screen 80 pages x 12 fader Built-in shape for color and tilt System Linux Profiles Support MA2 and Avolite profile Profile Extentions: XML , D4 , R20 in the console has most of lights in the market, we can write profile for you if the file doesn't exist in the console Size and Weight Power supply: AC100-240V, 50-60Hz. Size: 22.44" × 17.52" × 5.98" = 570mm × 445mm × 152mm Flight case package: 24x28x13 inches 73 lbs Package Included: Flight Case Two touch screen 16G USB disk Fast programming Patch → built-in effects → save to cue → multi steps → macro show with music 1. Clear the console when it’s new (recommended) Open Backup, tap [New Show], confirm. and name your file. 2.Patch the lights Press Patch, then [Patch New Fixture]. Select the light from the console system(many brands lights) or from USB, set quantity and start address (the console show the next free address automaticly). Tap [Confirm]. Repeat until every light is patched. 3.Select lights and light up In the Fixtures Layout window, select the lights you want. Double?tap Locate or press F1 / [Full] on the screen to turn them on in a default position. 4.Program the first step 1. Use the attribute keys and wheels A–C for pan/tilt, dimmer, color, gobo, prism, etc. 2. Add Effects or Color Picker for the lights—built-in position effects, color effects, and more make programming easy. 3. You can also use the [Fixture Attributes] window to draw dmx or shape to program. 5.Save one step to a fader (single cue) Press Save to Cue. Then press a playback key (the key for a fader or a fixed playback). That stores this program on that playback. 6.Save multi steps on one fader (cue list) Repeat steps 4 and 5 to build a multi-step program. (For 2nd step, Don’t forget to select the Save to Last Step button on screen.) 7.Adjust the time of each step You can adjust each step’s time, including Delay-In, Fade-In, Out-Delay, Out-Fade, and Overlap. 8.Record a show with music Open the [Macro show], [Time Code], and [Music Player] windows. In [Time Code], select Internal Music mode as the timecode source, choose the music you want, then press Record button(in the Time Code window) to record the show with music. 9.Save your show file Press Backup → [Save Show]. Or Press [Store] button before you turn off the console For more details, please check http://iDMX.ai
